PE File Format Deep Dive

Objective: Understand the internal structure of Windows Portable Executable (PE) files, including the DOS and NT headers, section table, and directory structures like the Import and Export Address Tables. This is foundational for reverse engineering, malware analysis, loader development, and shellcode injection.

Introduction

The PE (Portable Executable) format is the standard executable file format on Windows for .exe, .dll, .sys, .cpl, .ocx, and other binaries. It is based on the Common Object File Format (COFF) and is loaded and interpreted by the Windows PE loader.

The PE format is extremely modular and extensible, enabling the OS to map, load, resolve, and execute code with precision.

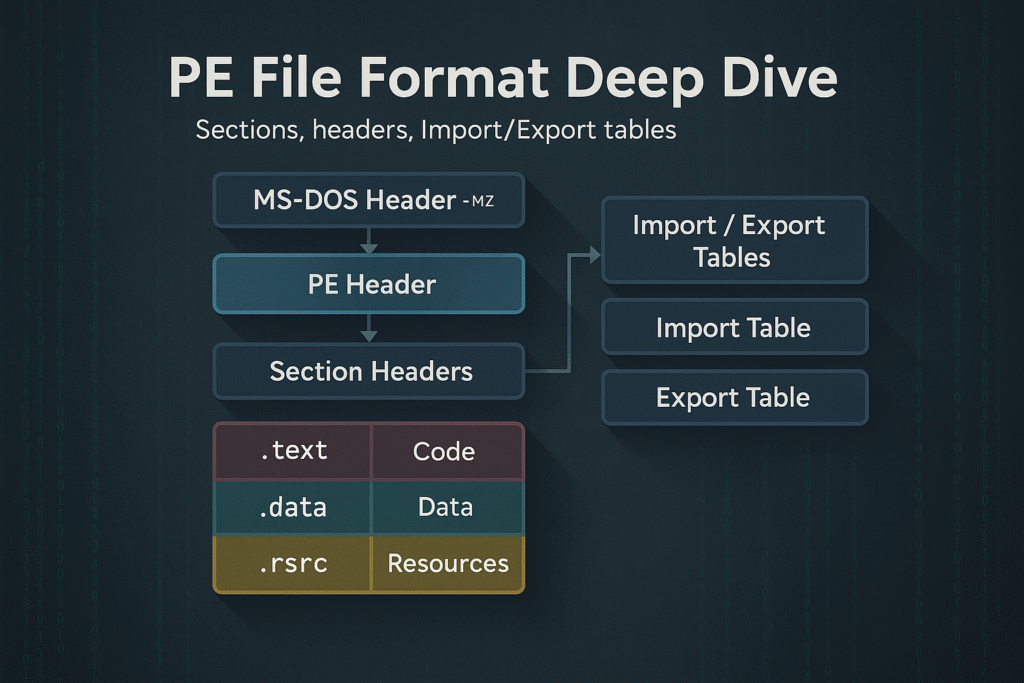

PE File Layout Overview

A PE file is a binary file with multiple headers, sections, and data directories. At a high level, it consists of:

+-----------------------------+
| MS-DOS Header (IMAGE_DOS_HEADER)
| MS-DOS Stub Program
+-----------------------------+
| PE Signature ("PE\0\0")
| COFF File Header (IMAGE_FILE_HEADER)
| Optional Header (IMAGE_OPTIONAL_HEADER)
+-----------------------------+
| Section Headers (IMAGE_SECTION_HEADER[])
+-----------------------------+
| Sections (.text, .data, .rdata, .rsrc, etc.)
+-----------------------------+

Let’s break down each of these components.

1. MS-DOS Header

Struct: IMAGE_DOS_HEADER
Size: 64 bytes

• Legacy compatibility with MS-DOS (displays “This program cannot be run in DOS mode.”)
• Key field: e_lfanew – offset to the PE Signature

typedef struct _IMAGE_DOS_HEADER {
  WORD   e_magic;      // "MZ"
  WORD   e_cblp;
  ...
  LONG   e_lfanew;     // Offset to PE header
} IMAGE_DOS_HEADER;

2. PE Signature

• Always located at offset e_lfanew
• 4-byte signature: "PE\0\0" or 0x00004550 (little endian)
• Followed by the COFF File Header

3. COFF File Header (IMAGE_FILE_HEADER)

Defines characteristics of the executable.

typedef struct _IMAGE_FILE_HEADER {
  WORD  Machine;             // e.g., 0x8664 for x64
  WORD  NumberOfSections;
  DWORD TimeDateStamp;
  DWORD PointerToSymbolTable;
  DWORD NumberOfSymbols;
  WORD  SizeOfOptionalHeader;
  WORD  Characteristics;     // e.g., IMAGE_FILE_EXECUTABLE_IMAGE
} IMAGE_FILE_HEADER;

4. Optional Header (IMAGE_OPTIONAL_HEADER)

Despite the name, this is required for PE files.

Split into 3 parts:

• Standard Fields
• Windows-Specific Fields
• Data Directories (Import Table, Export Table, etc.)

Key Fields:

typedef struct _IMAGE_OPTIONAL_HEADER {
  WORD  Magic;                // PE32: 0x10B, PE32+: 0x20B
  BYTE  MajorLinkerVersion;
  DWORD AddressOfEntryPoint; // RVA of main()
  DWORD ImageBase;           // Preferred base address
  DWORD SectionAlignment;
  DWORD FileAlignment;
  DWORD SizeOfImage;
  ...
  IMAGE_DATA_DIRECTORY DataDirectory[16];
} IMAGE_OPTIONAL_HEADER;

5. Section Headers (IMAGE_SECTION_HEADER[])

Each PE section has a 40-byte structure describing its properties.

Common Sections:

Fields:

typedef struct _IMAGE_SECTION_HEADER {
  BYTE  Name[8];               // ".text", ".data", etc.
  DWORD VirtualSize;
  DWORD VirtualAddress;
  DWORD SizeOfRawData;
  DWORD PointerToRawData;
  DWORD Characteristics;       // Access permissions
} IMAGE_SECTION_HEADER;

6. Data Directories

The PE file includes 16 data directories, pointed to by the DataDirectory[] array inside the optional header.

7. Import Table

This is a critical structure for resolving API dependencies.

• Located in .idata section
• Uses IMAGE_IMPORT_DESCRIPTOR

Import Table Structure:

typedef struct _IMAGE_IMPORT_DESCRIPTOR {
  DWORD OriginalFirstThunk; // INT (names or ordinals)
  DWORD TimeDateStamp;
  DWORD ForwarderChain;
  DWORD Name;               // DLL name RVA
  DWORD FirstThunk;         // IAT (actual addresses)
} IMAGE_IMPORT_DESCRIPTOR;

• INT (Import Name Table): RVAs to function names
• IAT (Import Address Table): Populated by the loader with actual addresses of APIs

8. Export Table

Used by DLLs to expose functions to other programs.

typedef struct _IMAGE_EXPORT_DIRECTORY {
  DWORD Characteristics;
  DWORD TimeDateStamp;
  DWORD MajorVersion;
  DWORD MinorVersion;
  DWORD Name;
  DWORD Base;
  DWORD NumberOfFunctions;
  DWORD NumberOfNames;
  DWORD AddressOfFunctions;
  DWORD AddressOfNames;
  DWORD AddressOfNameOrdinals;
} IMAGE_EXPORT_DIRECTORY;

Exports can be:

• By name
• By ordinal
• Forwarded exports (e.g., SHLWAPI.DLL!StrStrIW forwarded to NTDLL!StrStrIW)

Virtual Addresses vs File Offsets

• RVA (Relative Virtual Address): Offset from the ImageBase
• VA (Virtual Address): RVA + ImageBase
• Raw Offset: Physical file offset (on-disk)

Use Section Table and alignments (FileAlignment, SectionAlignment) to convert RVA <-> File Offset.

PE Loading (by the OS)

1. NTDLL loader maps PE into memory
2. Resolves relocations if ImageBase is unavailable (ASLR)
3. Parses Import Table and resolves API addresses
4. Initializes TLS callbacks (if present)
5. Jumps to AddressOfEntryPoint

Tools like x64dbg, CFF Explorer, PE-Bear, or PEview can visualize this.

PE Analysis Tips

Summary

• PE format is the blueprint of how Windows binaries are structured and executed
• Contains multiple headers (DOS, COFF, Optional) and section tables
• Imports, exports, and relocation tables are essential for execution
• Understanding PE layout is essential for malware reverse engineering, binary patching, and loader development
