System Calls and SSDT: How User Mode Reaches the Kernel

Objective: Understand how Windows user-mode code transitions to ring 0 via the SYSCALL instruction, how the System Service Descriptor Table (SSDT) dispatches those calls, and why SSDT hooking, direct syscalls, and modern kernel hardening (PatchGuard, HVCI, MWTI ETW) are central to both offensive tradecraft and defensive telemetry.

1. Why System Calls Exist

User-mode code runs at CPL 3 (ring 3). The kernel runs at CPL 0 (ring 0). Privileged operations — opening another process, mapping physical pages, accessing the file system, talking to drivers — require ring 0. The CPU enforces this with segment descriptors and page-table permissions; a direct CALL into kernel memory from user mode faults immediately.

The bridge is a controlled transition: the user-mode side specifies what it wants by number, the CPU switches to ring 0 at a fixed, kernel-controlled entry point, and the kernel validates and dispatches. That number is the System Service Number (SSN), and the dispatch table is the SSDT.

This design has two consequences that drive everything in this post:

• The kernel entry point is fixed and well-known, so an attacker who can write to ring 0 memory (a kernel rootkit) can redirect every syscall by patching one table.
• The user-mode side of the syscall (the stub in ntdll.dll) is not privileged, so an EDR can hook it — and a red teamer can bypass that hook by issuing the SYSCALL instruction themselves.

2. The Mechanics of SYSCALL on x64

SYSCALL is a dedicated x86-64 instruction designed for fast ring-3 → ring-0 transitions. It does not use the legacy interrupt gate (int 2Eh); it reads MSRs and jumps.

The x64 Windows syscall ABI:

• EAX holds the SSN (the index into KiServiceTable).
• R10 holds the first argument. The user-mode stub copies RCX into R10 because SYSCALL itself clobbers RCX with the return RIP.
• RDX, R8, R9, then stack — match the standard x64 calling convention for the remaining arguments.

A minimal user-mode stub, exactly as ntdll lays it out:

; NtFooBar — illustrative ntdll-style syscall stub (x64)
NtFooBar:
    mov   r10, rcx          ; SYSCALL clobbers RCX; preserve arg0 in R10
    mov   eax, 0x????       ; SSN — VERSION-SPECIFIC, resolve at runtime
    syscall                 ; ring-3 -> ring-0 via LSTAR
    ret                     ; SYSRET returns here

The 32-bit predecessor was SYSENTER (with entry stored in IA32_SYSENTER_EIP). On modern 64-bit Windows, SYSENTER is only relevant inside the Wow64 path.

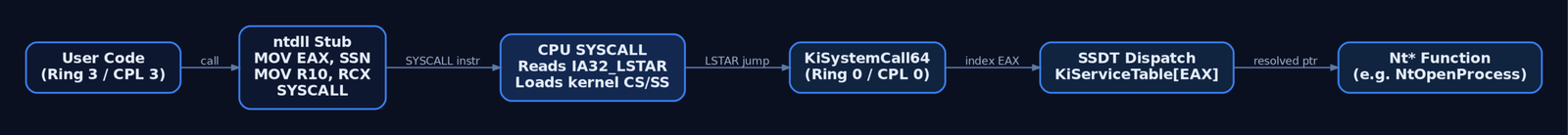

3. KiSystemCall64: The Kernel Entry Point

When the CPU executes SYSCALL from user mode:

1. It loads RIP from IA32_LSTAR (→ KiSystemCall64).
2. It loads CS/SS from IA32_STAR (kernel selectors).
3. It saves the old user RIP in RCX and old RFLAGS in R11.
4. It clears RFLAGS bits per IA32_FMASK.

KiSystemCall64 then:

• Swaps GS via SWAPGS to access the per-CPU KPCR.
• Switches from the user stack to the kernel stack stored in the KPCR.
• Builds a KTRAP_FRAME capturing the user context.
• Indexes KeServiceDescriptorTable (or the Shadow variant for Win32k GUI calls) using EAX.
• Calls the resolved Nt* function.
• On return, restores the frame and executes SYSRET to drop back to ring 3.

Selected KTRAP_FRAME fields (see WDK wdm.h for the full layout):

With Kernel Page-Table Isolation (KPTI) active, IA32_LSTAR points instead at KiSystemCall64Shadow, a thin trampoline that swaps from the user CR3 (which maps only a minimal kernel trampoline) to the full kernel CR3 before falling through into the normal dispatcher. This is the Meltdown mitigation.

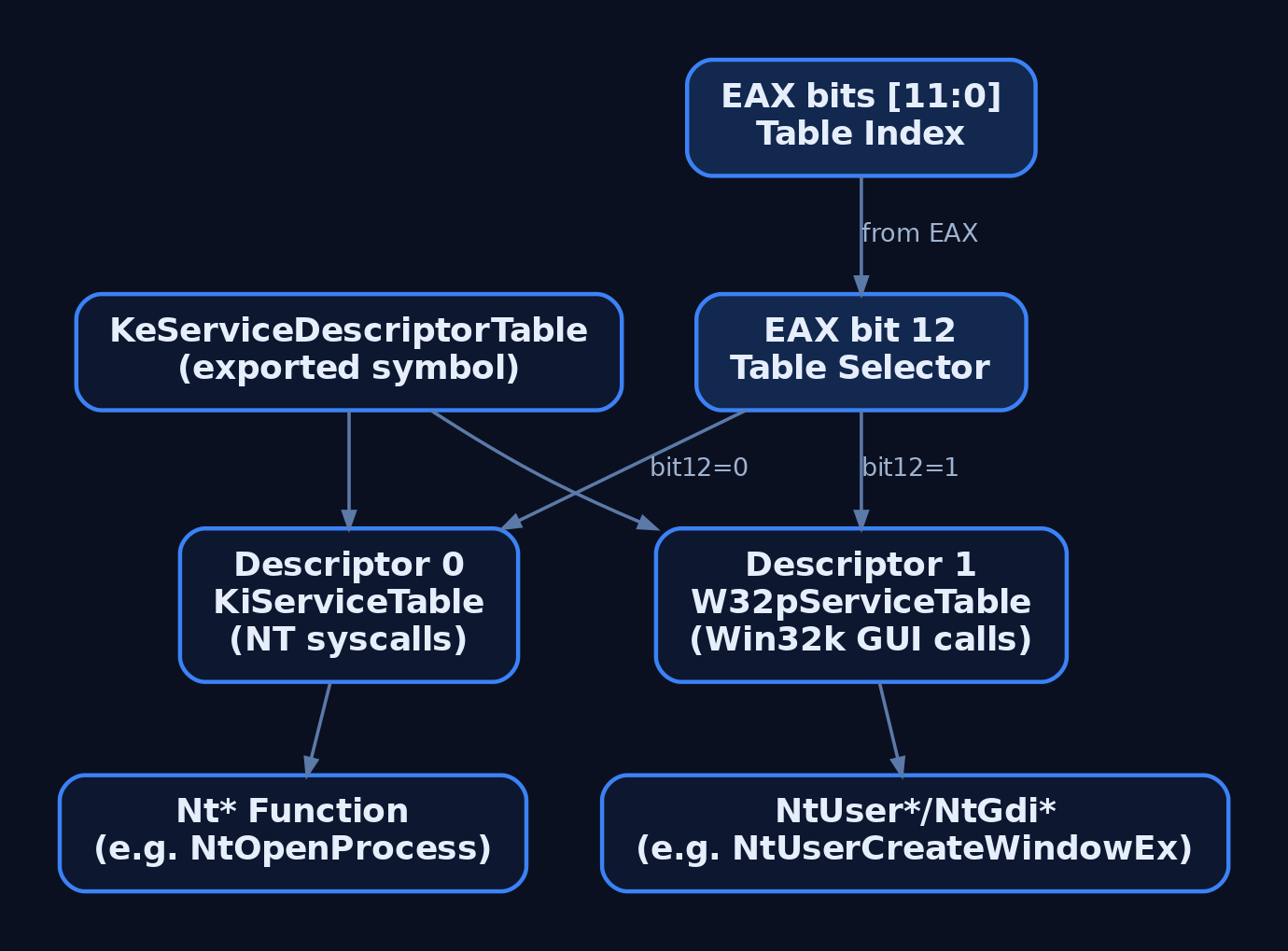

4. The SSDT and KSERVICE_TABLE_DESCRIPTOR

The “SSDT” in casual use refers to two related objects:

Approximate layout from public symbols:

typedef struct _KSERVICE_TABLE_DESCRIPTOR {
    PULONG_PTR ServiceTable;   // -> KiServiceTable (encoded offsets on x64)
    PULONG     CounterTable;   // call counters (typically NULL in retail)
    ULONG      TableSize;      // number of services
    PUCHAR     ArgumentTable;  // bytes of stack args per service
} KSERVICE_TABLE_DESCRIPTOR, *PKSERVICE_TABLE_DESCRIPTOR;

The SSN (EAX) is split: the low 12 bits index the table, and bit 12 selects which descriptor — 0 for KeServiceDescriptorTable, 1 for the Win32k shadow table. This is how GUI syscalls (NtUserCreateWindowEx, NtGdiBitBlt, …) coexist with kernel-proper syscalls in the same SSN space.

5. The x64 Encoded-Offset Format

A critical detail anyone writing an SSDT scanner gets wrong the first time: on x64 Windows, KiServiceTable entries are not function pointers. Each entry is a 32-bit value encoding a signed offset from the base of KiServiceTable itself, with the low 4 bits used to communicate the argument-count category to the dispatcher.

The decode is:

// Recover the real Nt* function address from KiServiceTable[i]
ULONG_PTR DecodeSsdtEntry(PULONG ServiceTable, ULONG index)
{
    LONG  encoded = (LONG)ServiceTable[index];     // signed 32-bit
    LONG  offset  = encoded >> 4;                  // arithmetic shift
    return (ULONG_PTR)ServiceTable + offset;       // base + offset
}

The arithmetic right shift matters — it preserves the sign, allowing functions located before KiServiceTable in memory to be addressed. A naive unsigned >> 4 will silently miss those entries and produce a corrupt scanner.

6. Tracing a Syscall End-to-End: NtOpenProcess

Following an OpenProcess call from a user-mode debugger target:

kernel32!OpenProcess
   └─> kernelbase!OpenProcess
        └─> ntdll!NtOpenProcess         ; the syscall stub
              mov  r10, rcx
              mov  eax, <SSN>           ; version-specific
              syscall
              ret
            ─────────── ring 3 / ring 0 boundary ───────────
            CPU: RIP <- LSTAR (KiSystemCall64[Shadow])
        nt!KiSystemCall64
          ├─ SWAPGS, switch to kernel stack
          ├─ build KTRAP_FRAME
          ├─ idx = EAX & 0xFFF
          ├─ desc = (EAX & 0x1000) ? Shadow : KeServiceDescriptorTable
          ├─ fn  = desc->ServiceTable + (desc->ServiceTable[idx] >> 4)
          └─ call nt!NtOpenProcess
                nt!NtOpenProcess
                  ├─ ObReferenceObjectByName / ByHandle
                  ├─ SeAccessCheck (DesiredAccess vs token)
                  └─ ObOpenObjectByPointer -> HANDLE
            SYSRET back to user-mode RIP saved in RCX

The SSN for NtOpenProcess changes between Windows builds; never hardcode it. Tooling either resolves it from the on-disk ntdll.dll, parses the in-memory stub, or consults a versioned table such as j00ru’s syscall reference.

A practical SSN extractor parses the Nt* export’s first instructions and reads the MOV EAX, imm32 (B8 xx xx xx xx) byte pattern:

# Parse SSNs from a clean on-disk ntdll.dll (illustrative)
import pefile, struct

pe = pefile.PE(r"C:\Windows\System32\ntdll.dll", fast_load=False)
pe.parse_data_directories()
image = pe.get_memory_mapped_image()

for exp in pe.DIRECTORY_ENTRY_EXPORT.symbols:
    name = exp.name.decode() if exp.name else ""
    if not name.startswith("Nt"):
        continue
    stub = image[exp.address: exp.address + 24]
    # Classic stub: 4C 8B D1  B8 ss ss 00 00  F6 04 25 ...  0F 05  C3
    if stub[0:3] == b"\x4c\x8b\xd1" and stub[3] == 0xB8:
        ssn = struct.unpack("<I", stub[4:8])[0]
        print(f"{name:40s} SSN=0x{ssn:04x}")

Red-team loaders use the same idea at runtime — sometimes against a fresh copy of ntdll read from disk to defeat in-memory EDR hooks (the “Perun’s Fart” / fresh-copy pattern).

7. Wow64 and Heaven’s Gate

A 32-bit process on 64-bit Windows still ultimately issues a 64-bit SYSCALL, because the only kernel entry the CPU honors from a 64-bit process is KiSystemCall64. The Wow64 layer bridges this:

32-bit app -> wow64cpu!CpupReturnFromSimulatedCode
           -> far jmp 0x33:<addr>          ; CS=0x23 (32-bit) -> CS=0x33 (64-bit)
           -> wow64.dll / 64-bit ntdll
           -> SYSCALL

The 0x33 / 0x23 CS selector switch is the so-called Heaven’s Gate (community label, not an official Microsoft term). Malware abuses it to:

• Execute 64-bit shellcode from a process that defenders are monitoring as a 32-bit target.
• Issue syscalls that bypass 32-bit ntdll hooks if the EDR only instruments the Wow64 layer.

Analysts should treat any unexpected far jmp to CS=0x33 in 32-bit code as a strong IOC.

8. SSDT Hooking: The Classic Rootkit Technique

Pre-Vista x64, kernel rootkits manipulated KiServiceTable directly:

1. Locate the descriptor (KeServiceDescriptorTable is exported; the Shadow descriptor was pattern-scanned).
2. Disable write protection (clear CR0.WP) or remap the page as writable.
3. Save the original entry for the target SSN (e.g., NtQueryDirectoryFile, NtEnumerateValueKey).
4. Overwrite the entry with a pointer to attacker code.
5. The hook calls the original after filtering results — hiding files, registry keys, processes, or network connections.

The illustrative read-only inspection (do not modify) inside a signed test driver:

extern PKSERVICE_TABLE_DESCRIPTOR KeServiceDescriptorTable;

VOID DumpSsdtSizeAndSample(VOID)
{
    PKSERVICE_TABLE_DESCRIPTOR d = KeServiceDescriptorTable;
    PULONG table = (PULONG)d->ServiceTable;

    DbgPrint("[SSDT] TableSize = %lu\n", d->TableSize);

    for (ULONG i = 0; i < 4 && i < d->TableSize; i++) {
        LONG      enc  = (LONG)table[i];
        ULONG_PTR addr = (ULONG_PTR)table + (enc >> 4);
        DbgPrint("[SSDT] [%lu] encoded=0x%08x -> 0x%p\n", i, enc, (PVOID)addr);
    }
}

// Reading LSTAR to confirm KiSystemCall64[Shadow]
VOID DumpLstar(VOID)
{
    ULONG64 lstar = __readmsr(0xC0000082);
    DbgPrint("[MSR] IA32_LSTAR = 0x%llx (KiSystemCall64[Shadow])\n", lstar);
}

Live inspection from WinDbg on a kernel-debugged target:

0: kd> dt nt!_KSERVICE_TABLE_DESCRIPTOR nt!KeServiceDescriptorTable
0: kd> dq  nt!KeServiceDescriptorTable L4
0: kd> dd  nt!KiServiceTable L20
0: kd> u   poi(nt!KiServiceTable) L5
0: kd> rdmsr c0000082

9. PatchGuard (KPP) and Why SSDT Hooking Died

Since x64 Vista, Kernel Patch Protection periodically validates a set of protected structures, including KiServiceTable, IDT, GDT, MSR_LSTAR, kernel image code sections, and several driver objects. On mismatch, KPP issues bugcheck 0x109 — CRITICAL_STRUCTURE_CORRUPTION. The checks run from randomized timers and contexts to resist disablement.

The practical result:

• SSDT hooking is no longer a viable persistence or hiding primitive on supported 64-bit Windows. Any survival window is short and ends in a BSOD.
• Modern kernel-mode attackers use driver callbacks (PsSetCreateProcessNotifyRoutine, ObRegisterCallbacks, minifilters) rather than SSDT patching, because those are the supported extension points and are not policed by KPP.
• With HVCI/Memory Integrity enabled, even loading the malicious driver is gated: kernel pages cannot be both writable and executable, and unsigned kernel code cannot enter ring 0 at all. The hypervisor enforces this at the EPT level — PatchGuard becomes a second line, not the first.

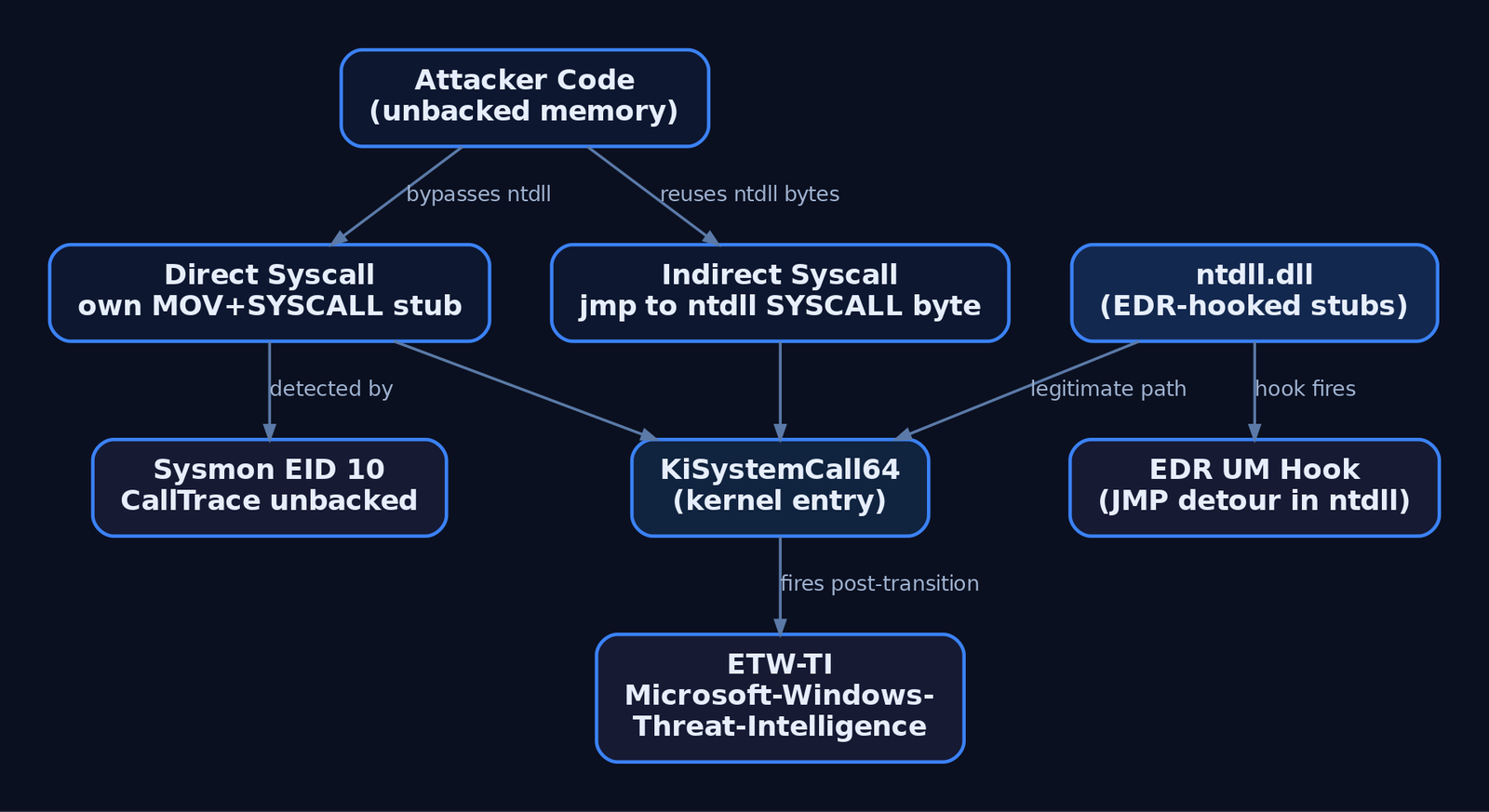

10. Direct and Indirect Syscalls (Modern Red Team TTPs)

Because KPP closed the kernel-side door, evasion moved into user mode. Many EDRs hook the Nt* stubs in ntdll.dll by overwriting the first bytes with a JMP into their inspection DLL. Two techniques bypass that:

• Direct syscalls. The loader embeds its own mov eax, ssn; syscall; ret stub in attacker memory and calls it instead of ntdll!NtXxx. The hooked ntdll is never touched. SSNs are resolved at runtime (parsing ntdll, sorting Nt* exports by address — the “Hell’s Gate” / “Halo’s Gate” patterns).
• Indirect syscalls. The mov eax, ssn happens in attacker memory, but the syscall instruction itself is reached by jumping to the syscall byte sequence inside ntdll.dll. The kernel-side return address therefore points back into ntdll, matching what legitimate code looks like in stack-walk telemetry.

The detection signal flips between the two:

ETW-TI is the answer to indirect syscalls: it fires from inside the kernel dispatcher, after the SYSCALL has already landed in KiSystemCall64, so the user-mode evasion is irrelevant.

11. Common Attacker Techniques

12. Defensive Strategies & Detection

The detection model has shifted from “watch the SSDT” (PatchGuard already does that) to watch how syscalls are issued from user mode and consume kernel ETW.

Sysmon

Sigma — direct-syscall NtOpenProcess against LSASS

title: Process Access to LSASS via Direct Syscall (Unbacked Call Stack)
id: 8d0c2a4e-syscall-lsass-unbacked
status: experimental
logsource:
  product: windows
  service: sysmon
detection:
  selection:
    EventID: 10
    TargetImage|endswith: '\lsass.exe'
    GrantedAccess:
      - '0x1010'
      - '0x1410'
      - '0x1fffff'
  unbacked:
    CallTrace|contains:
      - 'UNKNOWN'
      - 'UNKNOWN('
  filter_legit:
    SourceImage|endswith:
      - '\MsMpEng.exe'
      - '\MsSense.exe'
  condition: selection and unbacked and not filter_legit
level: high
tags:
  - attack.credential_access
  - attack.t1003.001
  - attack.t1106

ETW Providers Worth Subscribing To

Audit Policy

• Audit Sensitive Privilege Use — catches SeDebugPrivilege enabling, a near-universal precursor to syscall-based cross-process injection.
• Audit Process Creation with command-line capture.
• Audit Handle Manipulation with object SACLs on lsass.exe.

Hardening

• HVCI / Memory Integrity — single highest-value control. Blocks unsigned and W^X-violating kernel code; defeats BYOVD primitives that try to disable PatchGuard, patch the SSDT, or clear CR0.WP.
• VBS + Credential Guard — keeps LSASS secrets off the path even if a syscall reaches NtOpenProcess.
• KPTI — Meltdown mitigation; also implies KiSystemCall64Shadow is the LSTAR target.
• Driver Signature Enforcement + Microsoft vulnerable-driver blocklist — limits BYOVD options.
• EDR ntdll instrumentation — still valuable as a low-cost filter against commodity malware; layer with kernel ETW for the sophisticated cases.

13. Tools for Syscall and SSDT Analysis

14. MITRE ATT&CK Mapping

Summary

• Every Windows syscall is a SYSCALL instruction that lands at KiSystemCall64 via MSR_LSTAR and is dispatched through KiServiceTable using the EAX SSN.
• The SSDT on x64 stores encoded offsets, not raw pointers — base + (entry >> 4) — and the EAX bit 12 selects between the core and Win32k Shadow tables.
• PatchGuard killed SSDT hooking on x64; modern offense has moved to direct and indirect syscalls in user mode and to BYOVD when ring 0 is required.
• HVCI/VBS is the strongest defense against the kernel half; kernel ETW (Microsoft-Windows-Threat-Intelligence) is the strongest defense against direct/indirect syscalls because it fires after the transition.
• Detect with Sysmon EID 10 CallTrace (unbacked memory in the stack), enrich with ETW-TI, and map to MITRE T1106 / T1055 for response.
